Timing Cover
Left

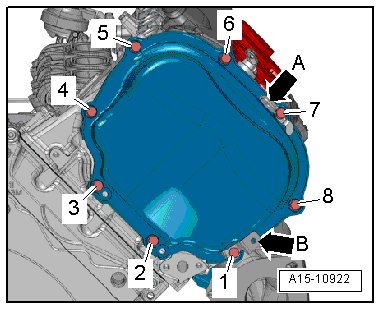

Timing Chain Cover Bolts
Replace bolts
First step: Bolts 1 through 8
5 Nm
Second step: Bolts 1 through 8
Tighten an additional 90°
Right
Timing Chain Cover Bolts
Replace bolts
First step: Bolts 1 through 8
5 Nm
Second step: Bolts 1 through 8
Tighten an additional 90°
Lower
Timing Chain Cover Bolts
Replace bolts
