System Specifications






Fastener Tightening Specifications

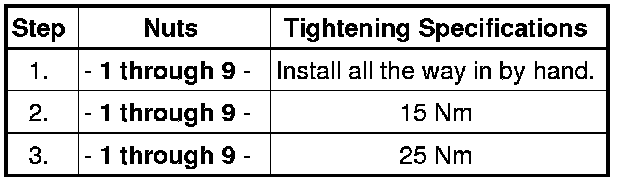

Left Exhaust Manifold, Tightening Specifications and Sequence

• Replace the nuts.

• Coat the thread on the nut with hot bolt paste; for the correct hot bolt paste, refer to the Parts Catalog.

- Tighten the nuts in 3 steps according to the tightening sequence:

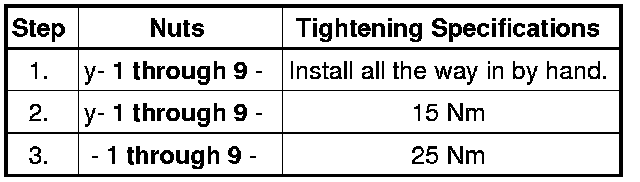

Right Exhaust Manifold, Tightening Specifications and Sequence

• Replace the nuts.

• Coat the thread on the nut with hot bolt paste; for the correct hot bolt paste, refer to the Parts Catalog.

- Tighten the nuts in 3 steps according to the tightening sequence:











Secondary Air Combination Valve Heat Shield - Tightening Specification






- Tighten the heat shield bolts - arrows - - 1 - to 9 Nm.

Secondary Air Combination Valve Heat Shield - Tightening Specification






- Tighten the heat shield bolts - arrows - - 1 - to 9 Nm.
