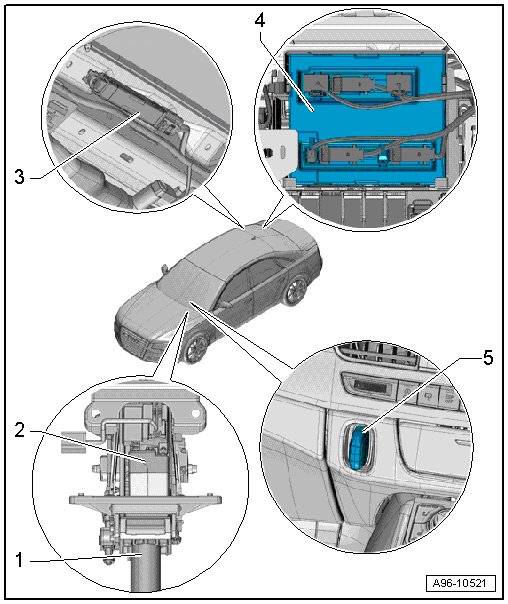

Access/Start Authorization System Overview
Access/Start Authorization System Overview
1 Steering Column
2 Electronic Steering Column Lock Control Module (J764)
3 Antenna Amplifier (R24)
• With Central Locking and Anti-Theft Alarm System Antenna (R47).
4 Comfort System Central Control Module (J393)
• Removing and installing, refer to => [ Comfort System Central Control Module (J393) ] Comfort System Central Control Module (J393).
5 Electronic Ignition Switch/Induction Coil
• Overview, refer to => [ Steering Column Switch Module, Electronic Ignition Lock and Induction Coil Overview ] Service and Repair.
