Access/Start Authorization Antennas







Access/Start Authorization Antennas

Removing






- Remove the rear door trim..

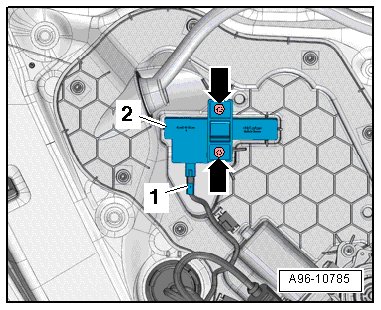

- Remove the screws - arrows - and remove the antenna - 2 -.

- Disconnect the electrical connector - 1 -.

Installing

• Tightening specification, refer to => [ Keyless Access Authorization Overview ] Keyless Access Authorization Overview.

Install in reverse order of removal, observing the following:

- Install the rear door trim..
