Multimedia System Control Head (E380) Connectors







Multimedia System Control Head (E380) Connectors

Multimedia System Control Head (E380)

• Unlisted connector terminals are not used.

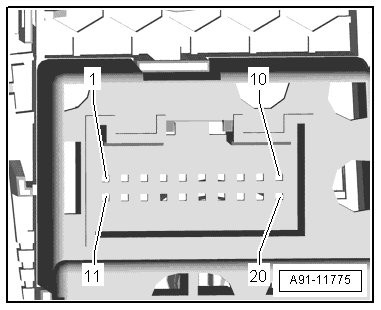

20 Pin Connector (T20f)





3 Display mount
4 Display -closed- stop switch (F331)
5 Display -open- stop switch (F330)
6 Wake UP to the information electronics control module 1 (J794)
7 Terminal 30
8 Terminal 31
10 Display unit button (E506) inside the instrument panel
13 Res HU to information electronics control module 1 (J794)
14 Res BT to information electronics control module 1 (J794)
15 Information electronics control module 1 data
16 Data to the information electronics control module 1
19 Display opening/closing motor (V301)
20 Display opening/closing motor (V301)
