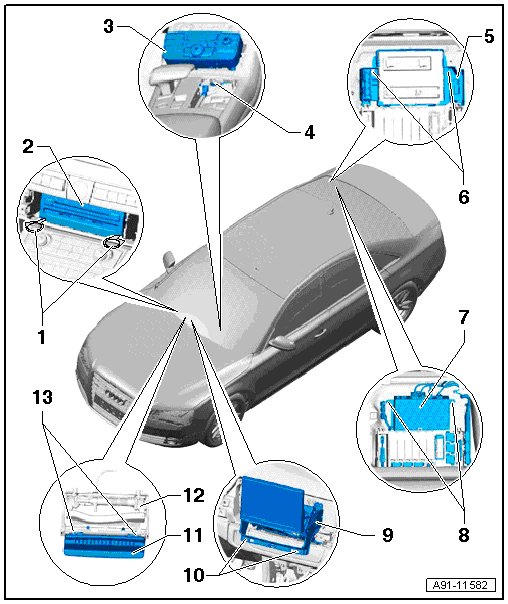

Component Location Overview

Component Location Overview






1 Radio Removal Tool (T10057)

2 Information Electronics Control Module 1 (J794)

• Connector assignment, refer to => [ Information Electronics Control Module 1 (J794) Connectors ] Information Electronics Control Module 1 (J794) Connectors.

• Removing and installing, refer to => [ Information Electronics Control Module 1 (J794) ] Information Electronics Control Module 1 (J794).

3 Multimedia System Control Head (E380)

• Connector assignment, refer to => [ Multimedia System Control Head (E380) Connectors ] Multimedia System Control Head (E380) Connectors.

• Removing and installing, refer to => [ Multimedia System Control Head (E380) ] Multimedia System Control Head (E380).

• With the touchpad control module (J929).

• Touchpad control module replacement, refer to => [ Touchpad Control Module (J929) ] Touchpad Control Module (J929).

4 Fork Bracket

5 Bracket

6 Nut

• 4 Nm

7 Radio

• Connector assignment, refer to => [ Radio, Harness Connectors ] Radio, Harness Connectors.

• Removing and installing => [ Radio ] Radio.

8 Threaded Studs

9 Display Mount

10 Screw

• 3 Nm

11 Front Information Display Control Head (J685)

• Connector assignment, refer to => [ Front Information Display Control Head (J685) Connectors ] Front Information Display Control Head (J685) Connectors.

• Removing and installing => [ Front Information Display Control Head (J685) Display ] Front Information Display Control Head (J685) Display.

12 Display Mount

13 Screw

• 1.5 Nm
