Global Positioning System Module: Locations

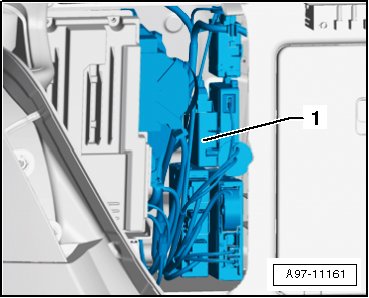

Control modules in rear part of vehicleLocation System Control Module -J895- Component Location: In luggage compartment left, on rear wall -1- .

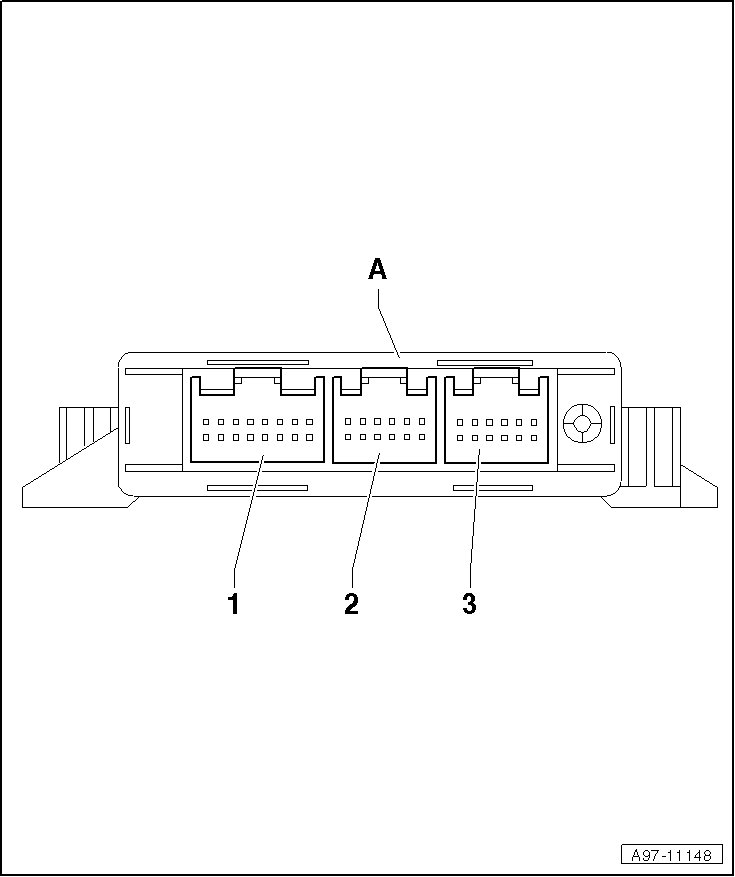

A - Location System Control Module -J895- 1 - Not used 2 - 12-Pin Connector -T12f- , brown 3 - Not used
