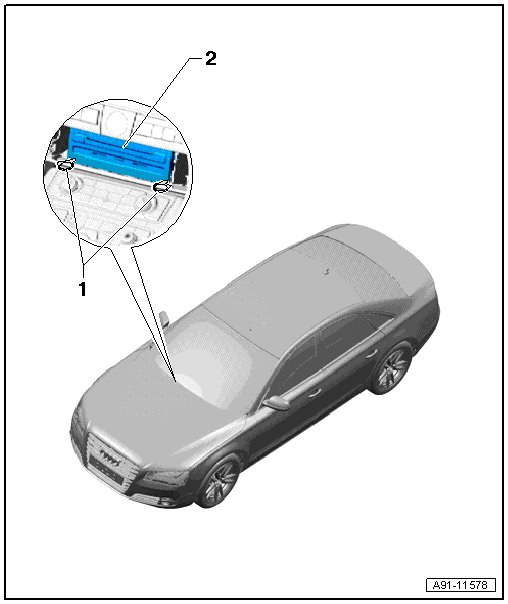

MMI Navigation Component Overview







MMI Navigation Component Overview






1 Radio Removal Tool (T10057)

2 Information Electronics Control Module 1 (J794)

• Connector assignment, refer to => [ Navigation, Information Electronics Control Module 1 (J794) (7T6) Connectors ] Navigation, Information Electronics Control Module 1 (J794) (7T6) Connectors.

• Removing and installing, refer to => [ Information Electronics Control Module 1 (J794) ] Information Electronics Control Module 1 (J794).
