Sound System Control Module Overview







Component Locations: Radio / Navigation Systems

Sound System Control Module Overview

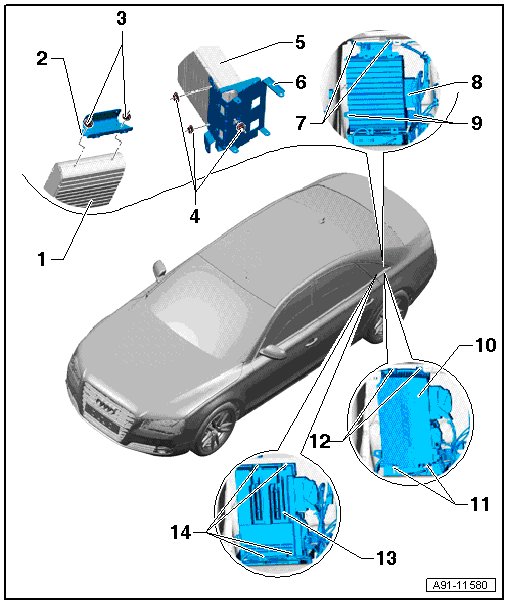

1 Digital sound system control module 2 -J787- (Bang & Olufsen�)
2 Bracket
3 Nut
4 Nut
5 Digital sound system control module 2 -J787- (Bang & Olufsen�)
6 Bracket
7 Nut
8 Digital sound system control module 2 -J787- (Bang & Olufsen�)
9 Nut
10
11 Screw
12 Nut
13 Digital sound system control module -J525- (Bang & Olufsen�)
14 Screw
