Memory Positioning Switch: Service and Repair







Seat Memory Program Control (E97)/(E277)

Removing






- Remove the interior door mechanism trim..

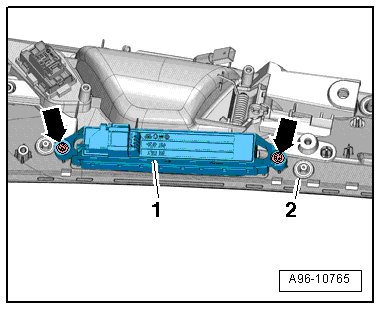

- Remove the bolts - arrows -.

- Remove the control head - 1 - from the trim with the interior door mechanism - 2 -.

Installing

• Tightening specification, refer to => [ Tightening Specification: Driver Memory Seat Control Head ] Front Door Lamps and Switches Overview.

Install in reverse order of removal, observing the following:

- Install the trim with the interior door mechanism..
