Procedures

Control Position for Alignment

Axle Alignment Control Position, Checking

Before performing an axle alignment on a vehicle with air suspension, check the curb weight or control position and adapt it again if necessary.

- Start the axle alignment using the vehicle diagnostic tester in "Guided Functions".

Determining the Height Dimension - a -

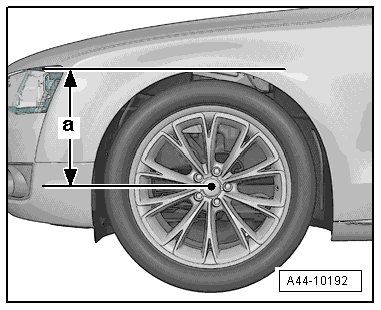

Height dimension - a - is the measurement in mm between center of wheel and lower edge of fender.

- Determine dimension - a - between the center of the wheel and the lower edge of the fender/wheel housing as illustrated.

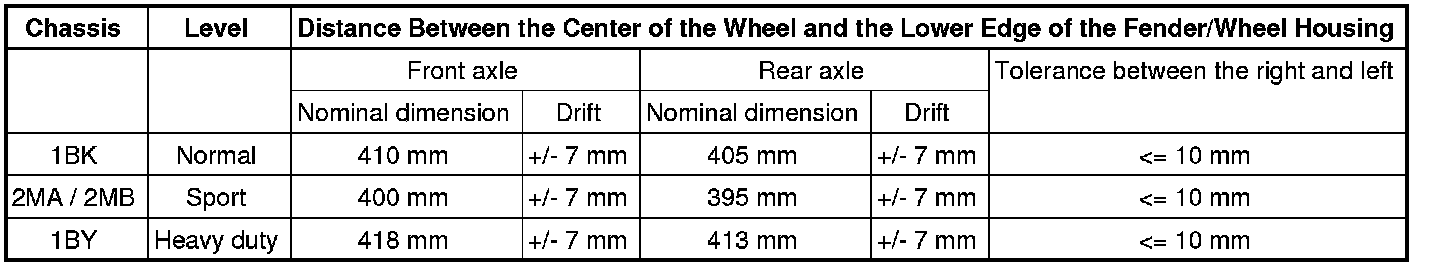

Height Dimensions Overview
