Peripheral Camera System Component Overviews

Peripheral Camera Control Module (J928) Connector Assignment

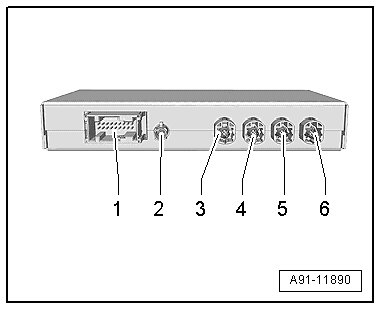

Peripheral camera control module (J928)





1. 18-pin connector (T18f)

2. FBAS output (T21t) to information electronics control module 1 (J794)

3. FBAS input (T5av) from left peripheral camera (R244)

4. FBAS input (T5aw) from right peripheral camera (R245)

5. FBAS input (T5ax) from front peripheral camera (R243)

6. FBAS input (T5ay) from rear peripheral camera (R246)


• Unlisted connector terminals are not used.

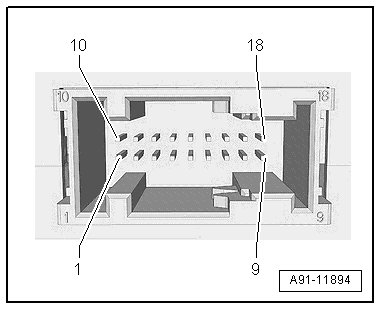

1 - 18-pin connector (T18f)





1 Terminal 30
2 CAN bus High (Comfort)
10 CAN bus Low (Comfort)
12 Terminal 31

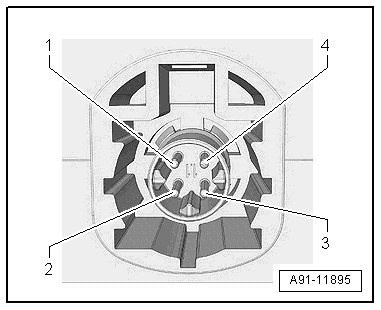

FBAS input





1. Power

2. LVDS (-)

3. LIN

4. LVDS (+)
