Engine Temperature Control Temperature Sensor
Engine Temperature Control Temperature Sensor Removing
-

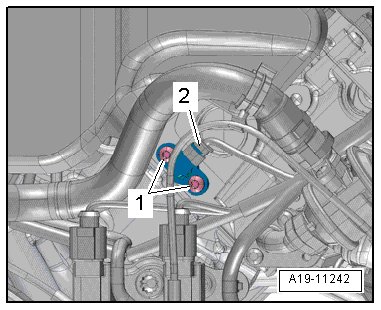

Disconnect the connector -
2 -.
-
Remove the bolts -
1 - and remove the engine temperature control temperature sensor (G694).
Installing
•
Tightening specifications, refer to => [ Cylinder Head Overview ]
Cylinder Head Overview.
Install in reverse order of removal. Note the following:
•
Replace O-ring.
