Control Module HVAC: Locations

Control modules in rear part of vehicle

Electrical A/C Compressor -V470-

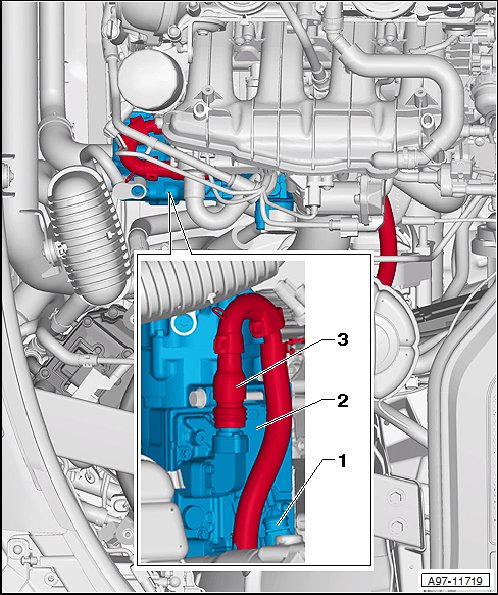

Component Location:
On left engine block

1 8-Pin Connector -T8az- , black
2 Electrical A/C Compressor -V470-
Internal Components: A/C Compressor Control Module -J842-
3 4-Pin Connector -T4ii- , Electrical A/C Compressor High Voltage Cable -P3-
