Control Modules on interior Mirror
Control modules in front part of vehicle

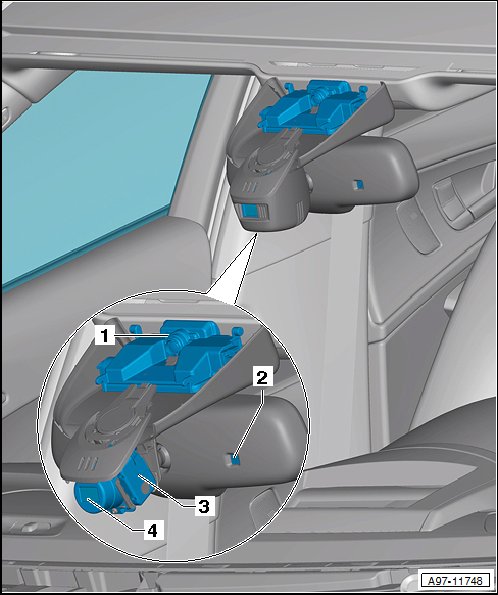

Control modules on interior mirror
Component Location:
On front roof pillar.
1 Camera Control Module -J852-
• Component Location and Connectors =>
2 Automatic Day/Night Interior Mirror -Y7- with Light Recognition Sensor -G399-
3 Humidity Sensor -G355-
4 Automatic High Beam Assist Control Module -J844-

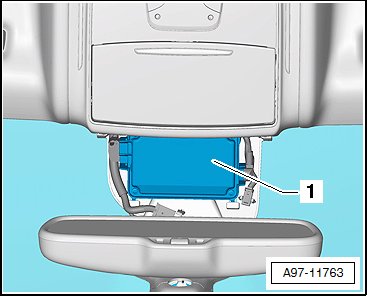

Camera Control Module -J852-
Component Location:
On upper windshield, center -1- .

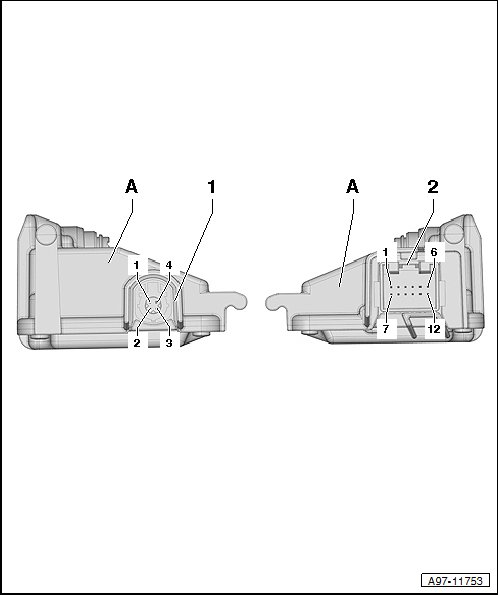

A - Camera Control Module -J852-
1 - 5-Pin Connector -T5m- , black
2 - 12-Pin Connector -T12o- , black
