Steering Rack, Checking Center Position

Steering Rack, Checking Center Position

• Centering the steering is meant only for "aligning" the steering for subsequent work.

• The steering wheel center position is determined exactly via the steering angle with the help of the alignment computer.

• If a steering wheel fault is determined when setting the center position of the steering, then check the steering and suspension for damage or deformations and replace any damaged components. Check the tie rod symmetry as well. Refer to => [ Maximum Steering Angle, Checking ] Maximum Steering Angle, Checking.

- Remove noise insulation..

- Bring the steering gear into the center position.

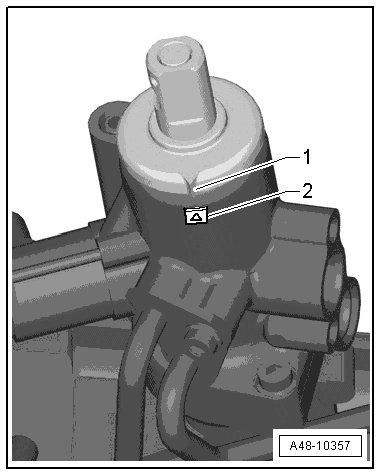

The point - 1 - must be opposite the marking - 2 -. The distances of the tie rod ends to the steering gear must be the same at the left and right.






• These designations only serve to assist in a general positioning of the steering center position.
