Engine Speed Sensor: Service and Repair
Engine Speed Sensor Removing
-
Remove the noise insulation, to do this loosen the mounting parts -
1, 2, 3 -.
-

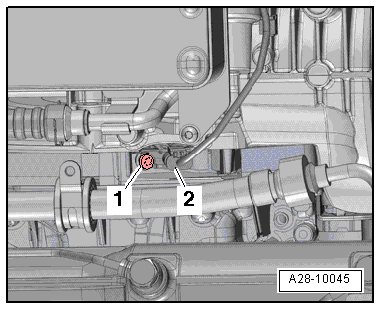

Disconnect the connector -
2 -.
-
Remove the bolt -
1 - and the
engine speed sensor (G28).
Installing
Installation is in reverse order.
Tightening Specifications
A005A8005-120410
