Fuel Tank Pressure Sensor (G400)






Fuel Tank Pressure Sensor (G400)

Removing






- Follow all safety precautions. Refer to => [ Safety Precautions ] Safety Precautions.

- Follow the guidelines for clean working conditions. Refer to => [ Clean Working Conditions ] Clean Working Conditions.

- Remove the right rear wheel.

- Remove right rear wheel housing liner..

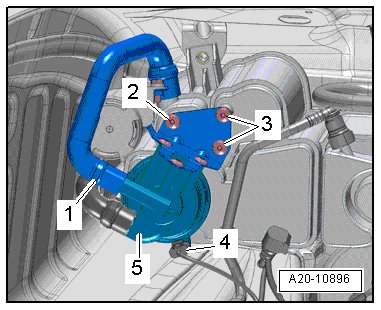

- Disconnect the connector - 4 -.

- Loosen the clamp and remove the vent line - 1 -.

- Remove the bolts - 2 and 3 -.

- Remove the fuel tank pressure sensor - 5 - and the air filter.

Installing

Install in reverse order of removal. Note the following:

• Tightening specification, refer to => [ Evaporative Emission Canister System Overview ] Service and Repair.

- Install the rear wheel housing liner..

- Install the rear wheel.
