Engine Control Module (ECM) -J623-







Control modules in front part of vehicle

Engine Control Module (ECM) -J623-


Component Location:

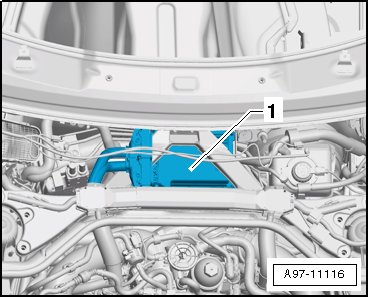

In center engine compartment -1-.

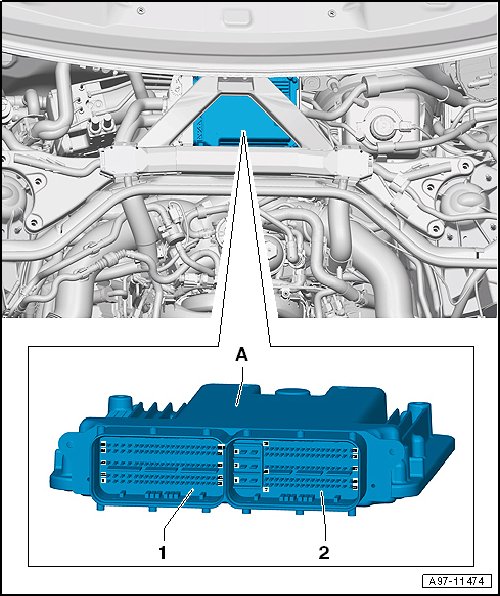

Engine Control Module (ECM) -J623- with 154-pin, Pin Connector





A - Engine Control Module (ECM) -J623-

1 - 60-Pin Connector -T60- , black

2 - 94-Pin Connector -T94- , black

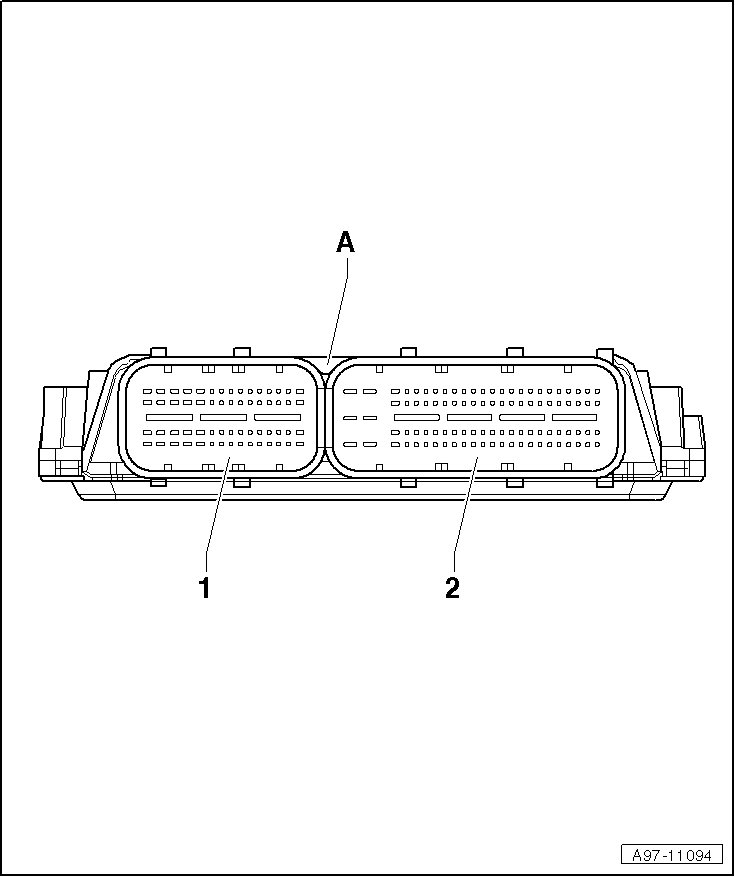

Engine Control Module (ECM) -J623- with 196-pin, Pin Connector





A - Engine Control Module (ECM) -J623-

1 - 105-Pin Connector -T105- , black

2 - 91-Pin Connector -T91- , black

Only engine codes CDTA, CDTB, CDRA, CDSB (from November
2011), CMHA, CEUA, CGTA, CLAB
