Seat Adjustment Control Head E470/E471/Front Seat Switch Module E663/E664







Seat Adjustment Control Head E470/E471/Front Seat Switch Module E663/E664

Driver seat adjustment control head (E470) / front passenger seat adjustment control head (E471) / driver seat switch module (E663) / front passenger seat switch module (E664)

Removing






- Remove the trim on the sill side. Refer to => [ Sill-Side Trim with Front Trim ] Sill-Side Trim with Front Trim.

- Remove the seat adjustment actuator. Refer to => [ Seat Adjustment Control Head ] Seat Adjustment Control Head.

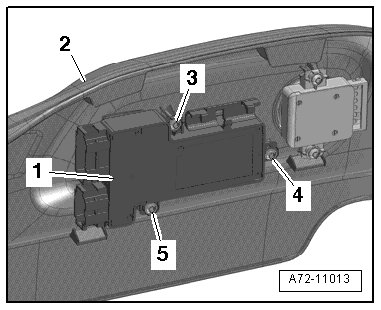

- Remove the bolts - 3, 4 and 5 -.

- Remove control head/switch module - 1 - from the sill side trim - 2 -.

Installing

Install in reverse order of removal. Note the following:

Installation note: For example tightening specifications, replace components => [ Seat Adjustment Control Head/Switch Module Operation Assembly Overview ] Seat Adjustment Control Head/Switch Module Operation Assembly Overview.
