Radiator Cooling Fan Control Module: Locations

Control modules in front part of vehicle

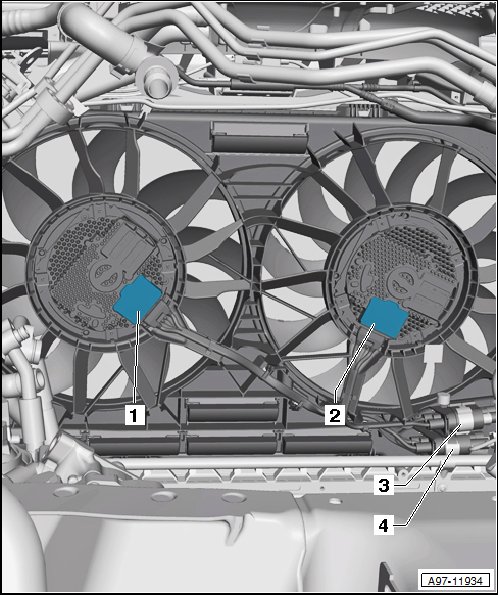

Coolant Fan Control (FC) Control Module -J293- /Coolant Fan Control (FC) Control Module 2 -J671-

Component Location:
On Cooler, front.

1 Coolant Fan Control (FC) Control Module 2 -J671-
• Coolant Fan 2 -V177-
2 Coolant Fan Control (FC) Control Module -J293-
• Coolant Fan -V7-
3 4-Pin Connector -T4f- , black
4 4-Pin Connector -T4e- , black
