Power Output Module 1, Right and Left Headlamp







Power Output Module 1, Right and Left Headlamp

Removing






- Remove headlamp housings, refer to => [ Headlamp Housing ] Headlamp Housing.

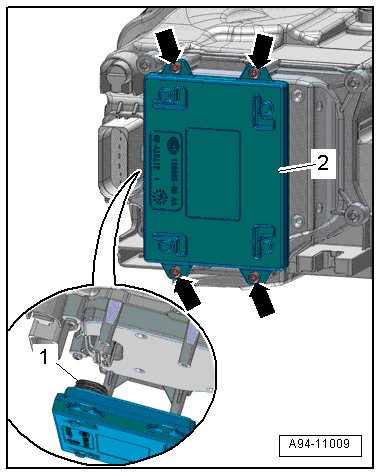

- Remove the bolts - arrows -.

- Remove the power output stage - 2 -.

Installing

• Tightening specification, refer to => [ LED Headlamp Overview ] LED Headlamp Overview.

Install in reverse order of removal, observing the following:

- Make sure the seal - 1 - between the power output stage and the housing cover is not damaged.

- Install the headlamp housing, refer to => [ Headlamp Housing ] Headlamp Housing.
