Controls, Housing

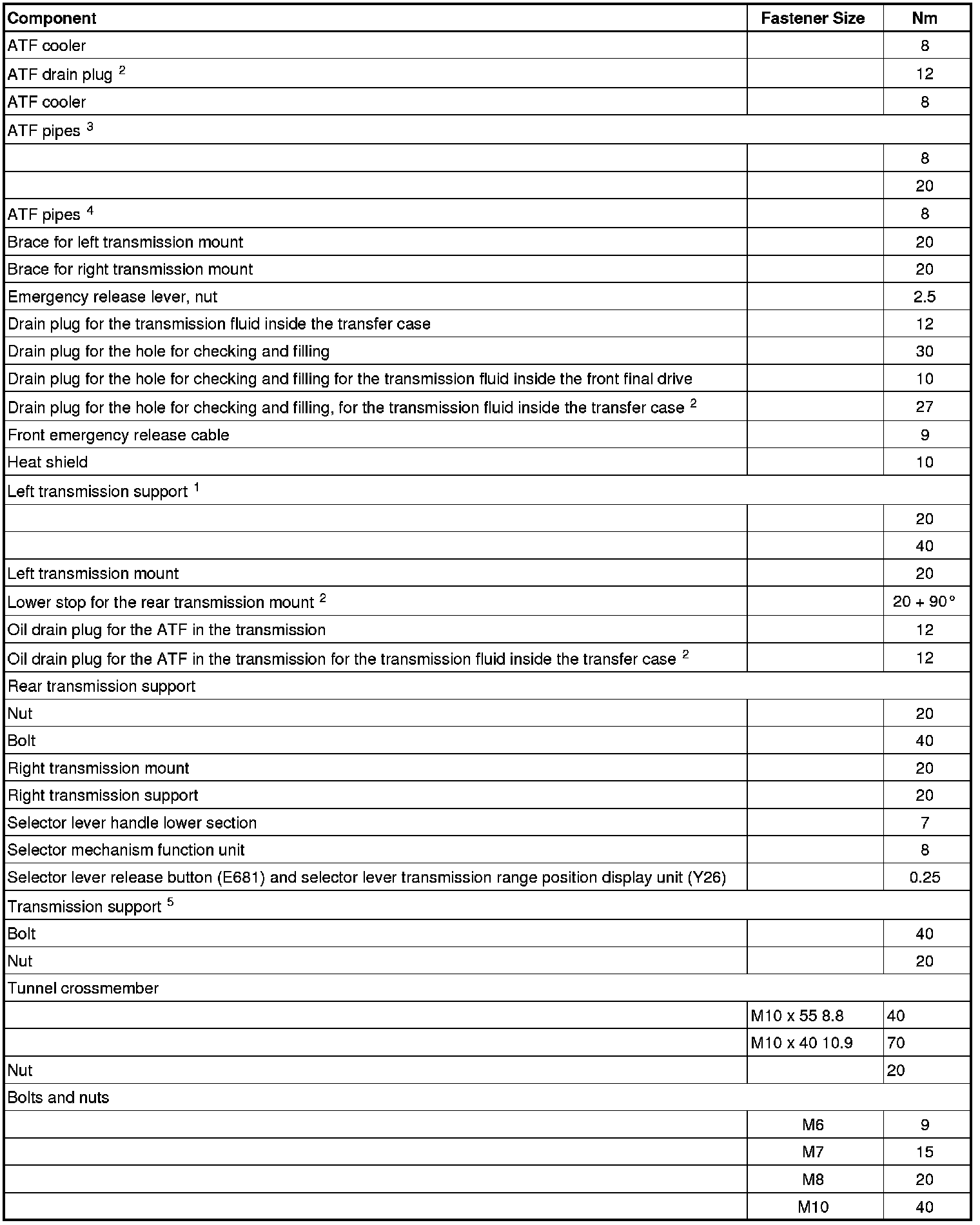

Fastener Tightening Specifications










Selector Lever Sensor System Control Module (J587) Tightening Specification and Sequence






- Tighten the bolts to 1.1 Nm in the following sequence: - 1 to 4 -.

Drive Axle Heat Shields - Tightening Specification






• The right drive axle is shown in the illustration.

- Tighten the heat shield bolts - arrows - to 23 Nm.

Mounting, Transmission to the 3.0L TDI Engine











Transmission Mount to the 3.0L TFSI Engine











Mounting, Transmission to a 4.0L TFSI Engine or to a 4.2L FSI Engine











Mounting, Transmission to the 6.3L FSI Engine
