Intake Manifold

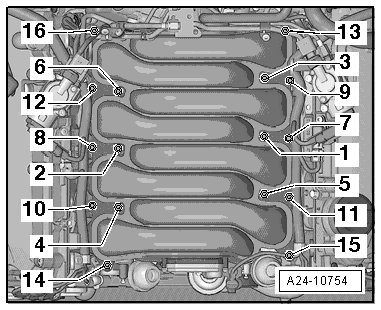

Intake Manifold Tighten
intake manifold bolts in - 1 through 16 - sequence
First tightening:
8 Nm
Second tightening:
11 Nm

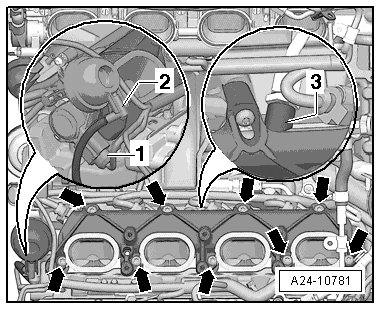

Intake Manifold Lower Section
Tighten the bolts - arrows - for the
intake manifold lower section diagonally and in steps
Tighten to
10 Nm
