Battery, Preparing for Support Mode






Battery, Preparing for Support Mode

Observe notes on contact corrosion. Refer to=> [ Contact Corrosion ] Contact Corrosion.

Procedure

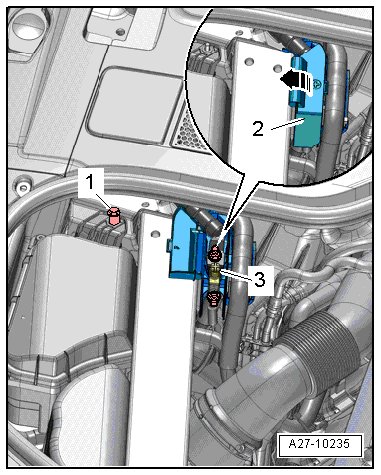

- Unlock the cover - 2 - and swivel it to the side - arrow -.

- Connect the red charging clamp "+" from the battery charger to the positive terminal clamp - 3 - and the black charging clamp "-" to the ground terminal clamp - 1 -.

- Connect the battery charger electrical system connector and turn on the battery charger.
