Steering Column Electronic Systems Control Module -J527-







Control modules in front part of vehicle

Steering Column Electronic Systems Control Module -J527-


Component Location:
On steering column on steering column switch.

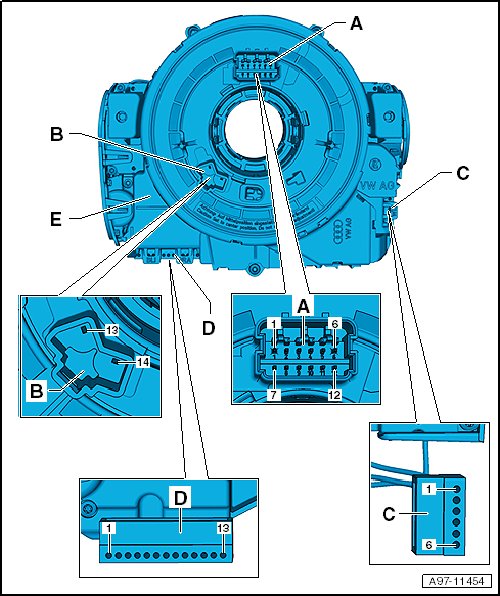

Front side





A - 12-Pin Connector -T12v- , black

B - Double Connector -T2dm- , black

C - 6-Pin Connector -T6m- , black

D - 13-Pin Connector -T13b- , black

E - Steering Column Electronic Systems Control Module -J527-

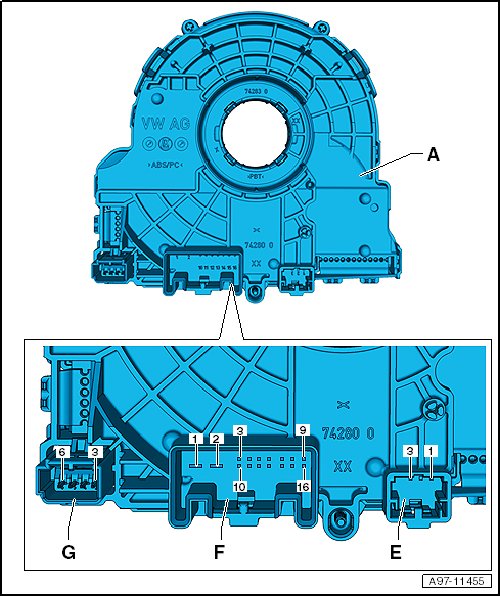

Rear side





A - Steering Column Electronic Systems Control Module -J527-

G - 4-Pin Connector -T4aq- , yellow

F - 16-Pin Connector -T16d- , black

E - Not used
