Timing Cover

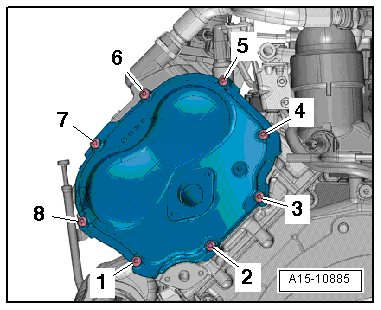

Left
Timing Chain Cover
Tighten the bolts to
9 Nm
Tighten in sequence
1 to 8

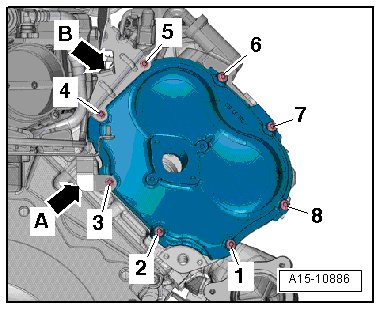

Right
Timing Chain Cover
Tighten right
timing chain cover bolts to
9 Nm
Tighten in sequence
1 to 8
The brackets - arrows A, B - are connected with the left
timing chain cover

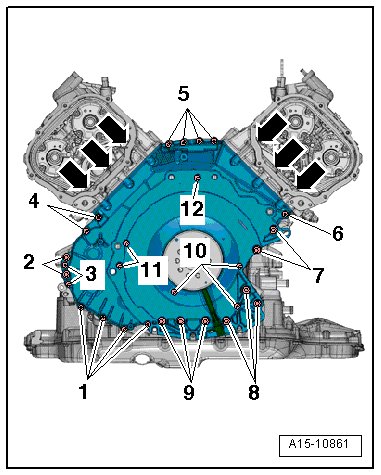

Lower
Timing Chain Cover
Replace bolts which have been tightened to an additional torque
Tighten bolts in 6 stages as follows
