Procedure 2

Outside Air Temperature Sensor (G17)

Removing

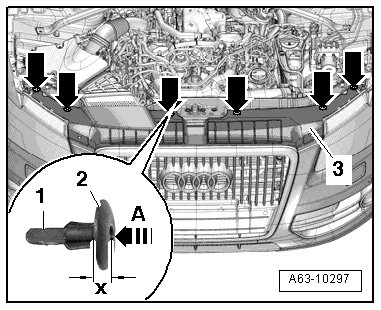

- To remove the expanding clips - arrows -, carefully push the pin - 1 - to dimension - x - until it audibly engages into the expanding clip - arrow A -.

• Dimension - x - = 5 mm.

- Remove the unlocked expanding clip - 2 - and the pin.

- Lift the cover - 3 - on the lock carrier and engage it on the radiator grille.

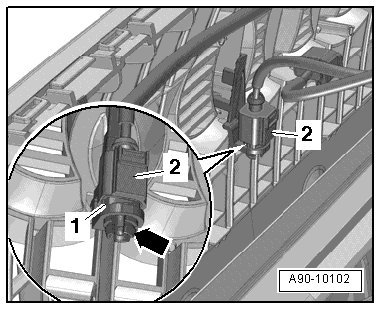

- Disconnect the electrical connector - 2 -.






- Carefully press the retaining clips together - arrow - and remove the outside air temperature sensor - 1 - upward from the bracket.

Installing

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Install in reverse order of removal, observing the following:

- Install the lock carrier cover on the radiator grille. Refer to Removal and Installation.
