Rear Axle Camber, Adjusting

Rear Axle Camber, Adjusting

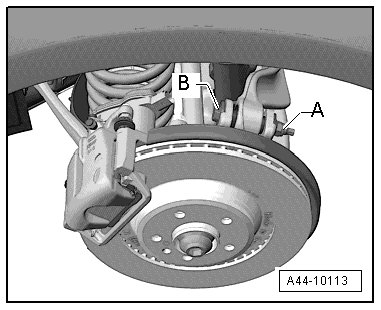

- Remove the nut - A - of threaded connection of wheel bearing housing/control arm, and screw on new nut until stop.






- Adjust the camber by rotating the adjusting bolt - B -. To turn the adjusting screw - B -, turn the hex head at the top of the screw.

Axle alignment specified values, refer to => [ Wheel Alignment Specified Values ] [1][2]Alignment.

• The maximum adjustment range is 135° to left or right of center position.

• Do not rotate the adjusting bolt - B - further once the end position has been reached or the components will be damaged.

• For a better illustration, camber adjustment is shown with wheel removed.

- Tighten nut - A -.

- After tightening nut - A -, check camber value once more. Refer to => [ Wheel Alignment Specified Values ] [1][2]Alignment.
