Tire Pressure Monitoring Control Module

Tire Pressure Monitoring Control Module

Special tools, testers and auxiliary items required

• Torque wrench (V.A.G 1783)

• The tire pressure monitoring control module (J502) is located in the right front footwell under the instrument panel.

• Before removing the tire pressure monitoring control module, perform Guided Fault Finding under "replace control module".

Removing

- Remove the glove compartment. Refer to Removal and Installation.

- Remove the sill panel strip..


• Make sure the carpet does not tear when handling it.

- Carefully lay the carpet aside with the help of a second technician.

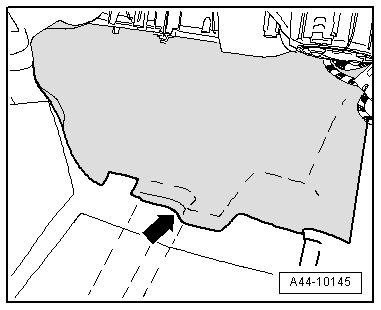

- Move the insulating mat - arrow - up.






- Release and remove the connector - 3 -.

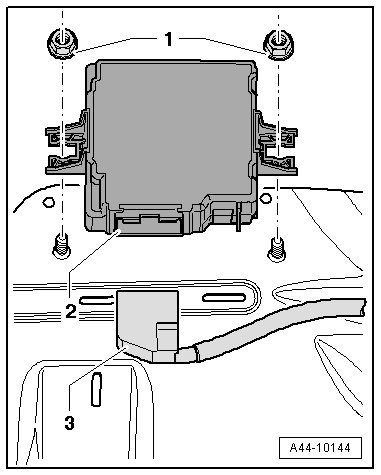

- Remove the nuts - 1 - and remove the tire pressure monitoring control module - 1 - upward.

Installing

Install in reverse order of removal. Pay attention to the following:

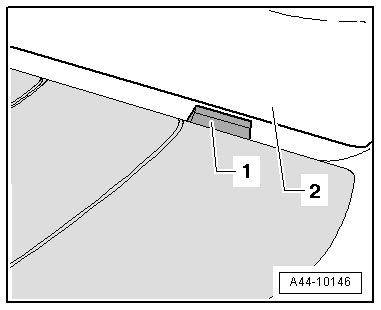

- If the center console was pulled out of the instrument panel when pulling the carpet back, insert the center console with the pins - 1 - in the instrument panel - 2 -.






- Tighten the nuts - 1 - to 2 Nm.

- The system must be coded if the tire pressure monitoring control module is replaced. Refer to => [ Tire Pressure Monitoring System Usage ] Tire Pressure Monitoring System Usage.
