Roof Blind Control Module






Roof Blind Control Module

Removing

- Remove headliner..

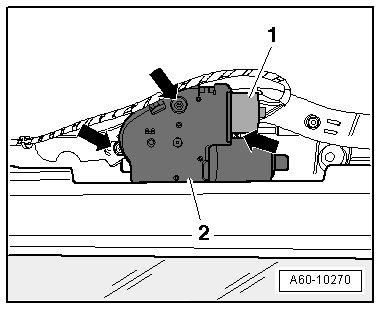

- Disconnect the connector - 1 - on the roof blind control module - 2 -.





- Remove the screws - arrows - from the roof blind control module - 2 -.

- Remove the roof blind control module - 2 -.

Installation

- To install, perform the steps used in removal in reverse order.

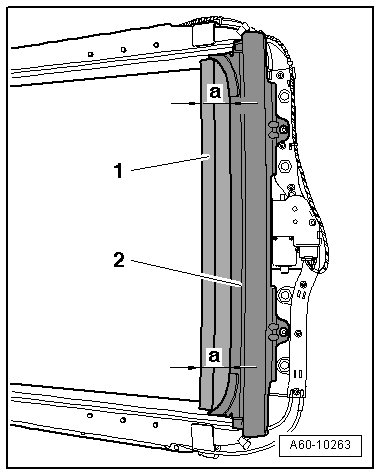

- Prior to installing the motor, make sure the sun shade is parallel by measuring - dimension a - between the shade arch - 1 - and the shade cartridge - 2 -.





Tightening Specifications

Screws - 3.5 Nm

- After completing the work procedure, perform an adaptation on the sun shade motor. Refer to => [ Sunroof Adaptation ] Testing and Inspection.
