System Specifications

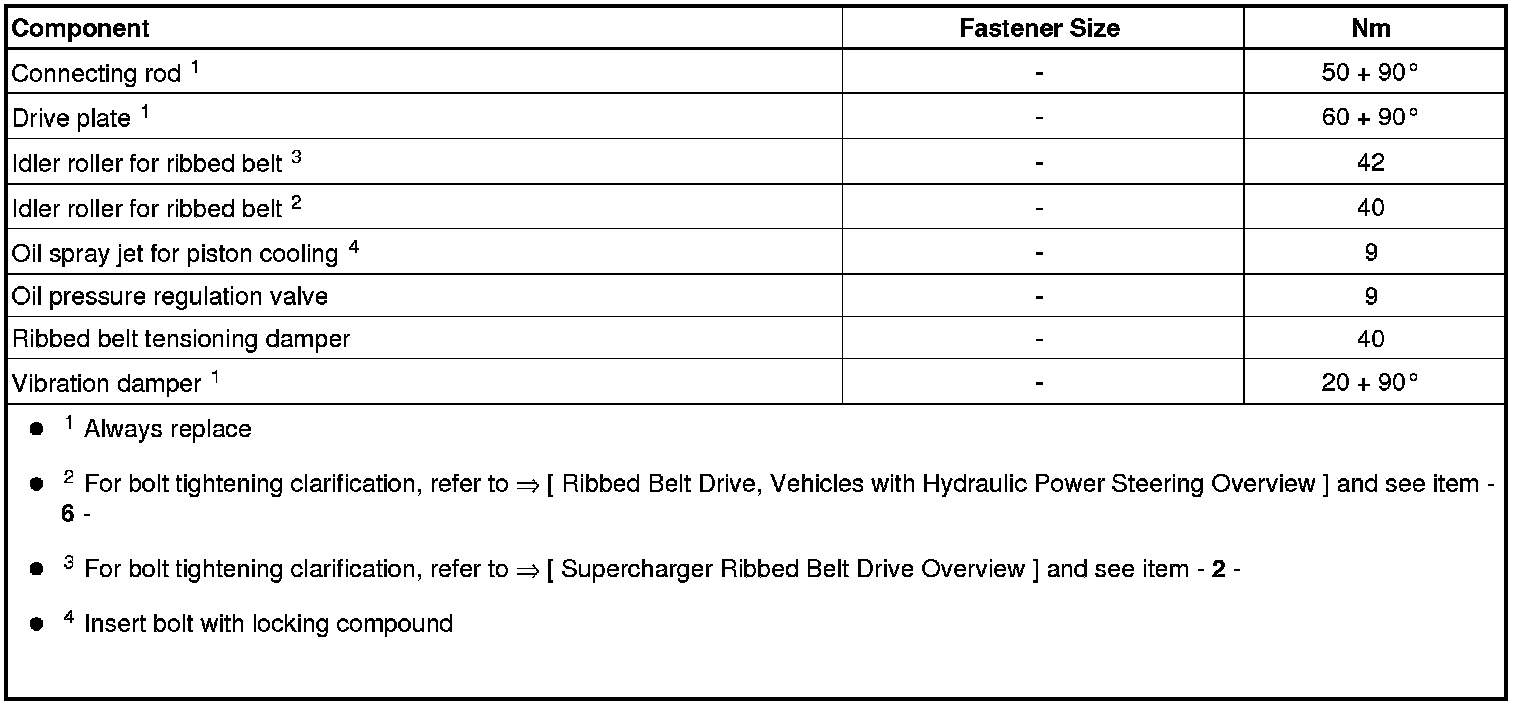

Fastener Tightening Specifications






"TDC" Marking Locking Bolt - Tightening Specification






• Replace the O-ring.

- Tighten the locking bolt - arrow - to 14 Nm.

Guide Frame






• Replace bolts that are tightened to the specification.

- Insert the long bolts in the inner row of the guide frame.

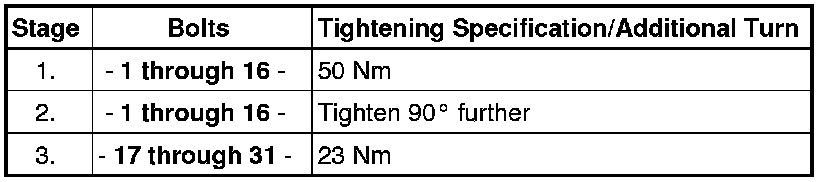

- Tighten the bolts in 3 steps in the sequence shown:






Ribbed Belt Pulley Side Sealing Flange - Tightening Specifications and Sequence






- Tighten the bolts - arrows - in a diagonal sequence in stages to 9 Nm.
