Alignment

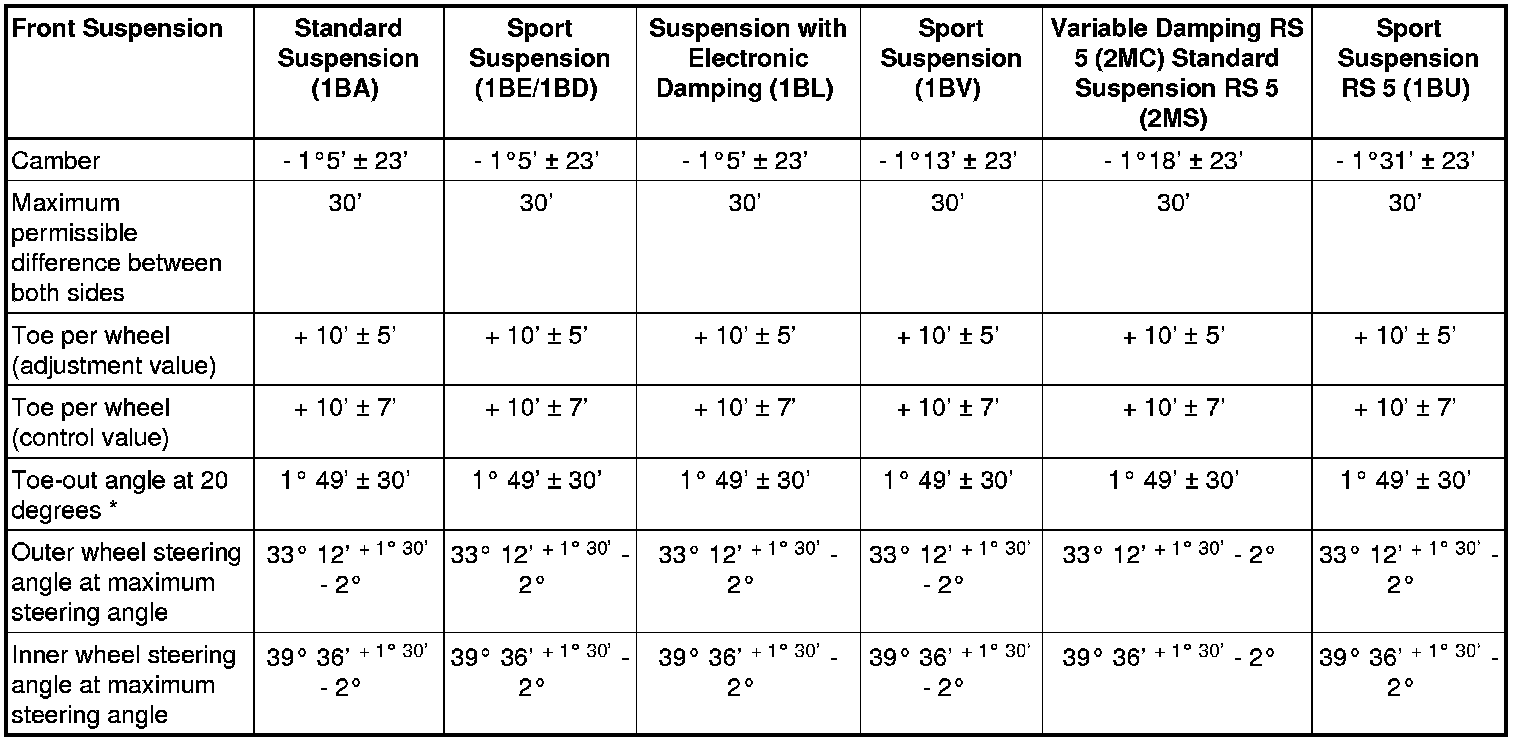

Wheel Alignment Specified Values

Coupe

Specifications valid for all engine versions






* Wheel stop on outer wheel is reduced by this amount. It can also be indicated negatively in alignment computer, depending on manufacturer.






Additional Vehicle Data for Vehicles

This additional vehicle data only serves for a faster diagnosis in the case of accidents.

Table, refer to => [ Chassis ] .

Cabriolet

Specifications valid for all engine versions






* Wheel stop on outer wheel is reduced by this amount. It can also be indicated negatively in alignment computer, depending on manufacturer.






Additional Vehicle Data for Vehicles

This additional vehicle data only serves for a faster diagnosis in the case of accidents.

Table, refer to => [ Chassis ] .
