Heater Core Temperature Sensor / Switch: Service and Repair
-
Disconnect battery ground lead.
-

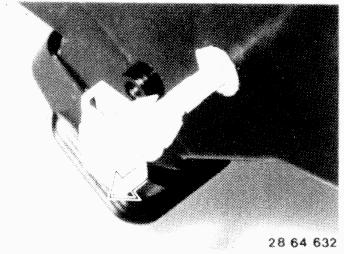

Unscrew bolts.
-
Place trim panel in footwell.
-

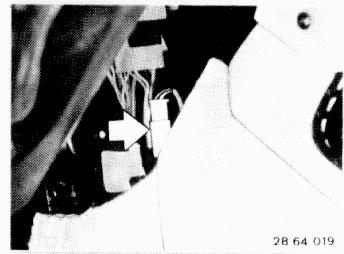

Pull off plug on temperature sensor.
-
Pull temperature sensor out of housing.
Note: Temperature sensor clamps fit tight in heater housing.
-
Reverse procedure to install.
