Crankshaft Position Sensor: Service and Repair

REPLACING/CHECKING TDC POSITION TRANSMITTER BMW 528e





- Unlock clips and pull diagnosis plug out of holder
- Remove protective hose.

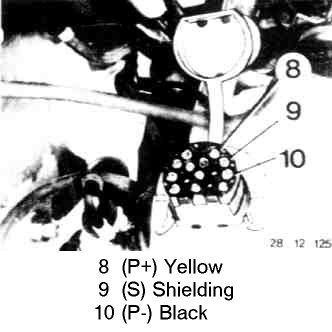

- Press plug receptacles out of chambers 8, 9 and 10 with special tool.

Installation Note:





- Connect new position transmitter as shown.





- Press position transmitter out of holder.

Installation Note:

- Mount wire.
- Provide spacing (A) of 0.2 to 2.0 mm (0.008 to 0.079").

Checking:





- Measure resistance of transmitter on diagnosis socket terminals 8 and 10.
