Throttle Position Switch: Adjustments

ADJUSTING THROTTLE SWITCH





- Check throttle switch.

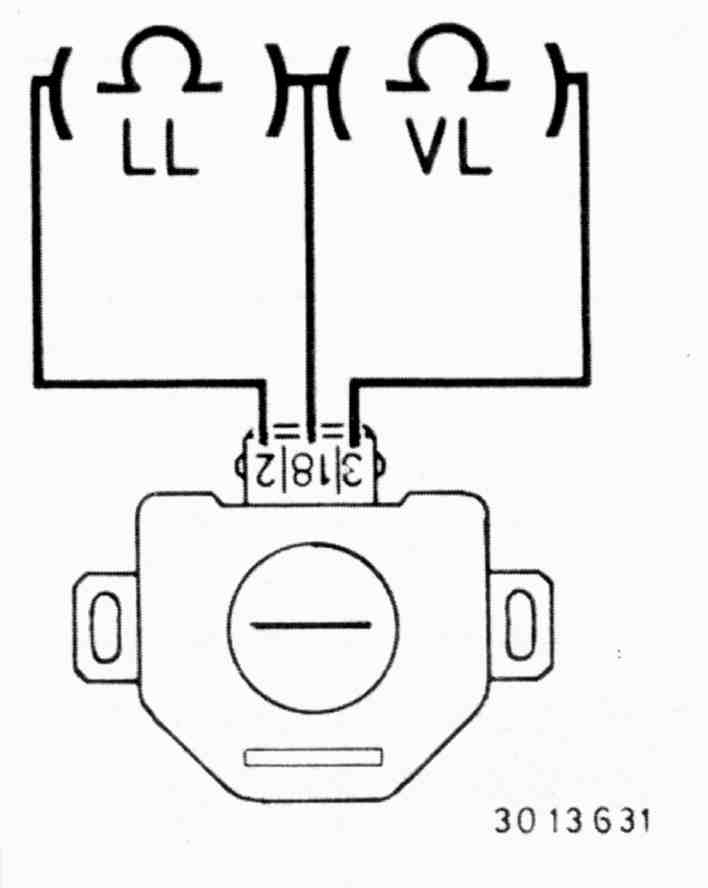

- There should be approximately 0 ohm between. connections 2 and 18 when throttle is closed.
- With the throttle wide open there must be approximately 0 ohm between connections 3 and 18.
LL = Idle
VL = Full throttle

Adjusting:





- Remove throttle housing
- There should be approximately 0 ohm between. connections 2 and 18 when throttle is closed.
- Adjust by loosening screws (1) and turning the throttle switch.
- Open throttle after finishing adjustments resistance should rise immediately to ohms.
- When releasing the throttle, the resistance must drop again to approximately 0 ohm.
