Cabin Temperature Sensor / Switch: Service and Repair
-
Unscrew bolts (1...4).
-
Place trim panel in footwell.
-

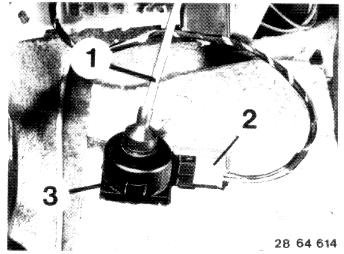

Pull off vacuum hose (1) and plug (2) on passenger compartment temperature sensor.
-

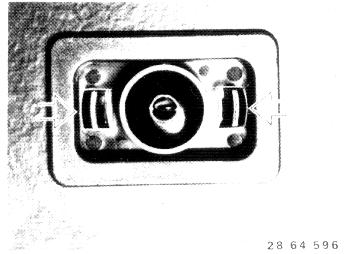

Compress clips and pull temperature sensor back cut of plate.
-
Reverse procedure to install.
