Timing Component Alignment Marks: Locations

Timing Component Alignment Marks

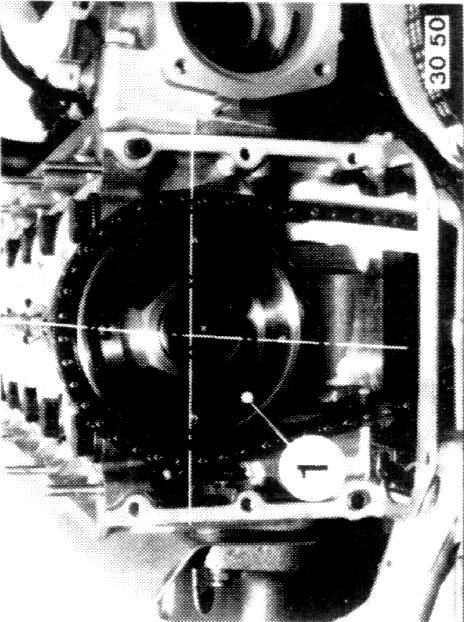

Ensure dowel pin is at 7:30 position and sprocket bolts are perpendicular to cylinder head flange. Crankshaft at top dead center.

For further information refer to Timing Chain : Service and Repair
Service and Repair

CAUTION!:
- Incorrect setting/installation could damage or break the camshafts.
- Valves could also be bent through contact with the piston crowns.
- Never crank engine after removing chain.
- Always note installation instructions and use specified special tools, procedures, and sequences.
