System Specifications

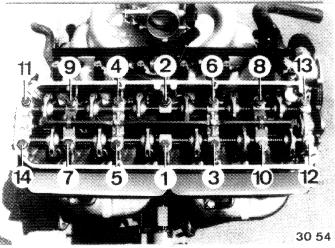

Cylinder Head Torque Sequence6 Cylinder M30 Tighten Sequence:
Cylinder Head Bolts [1] Step #1
60 Nm (45 ft lb).
Wait 20 minutes!
Step #2
80 Nm (59 ft lb).
Run engine warm 25 minutes!
Step #3
Torque Angle 35 ° CAUTION:
Remove oil and debris from bolt holes. If not, improper values or damage may result.
[1] Install new, lightly oiled bolts.
