DKI

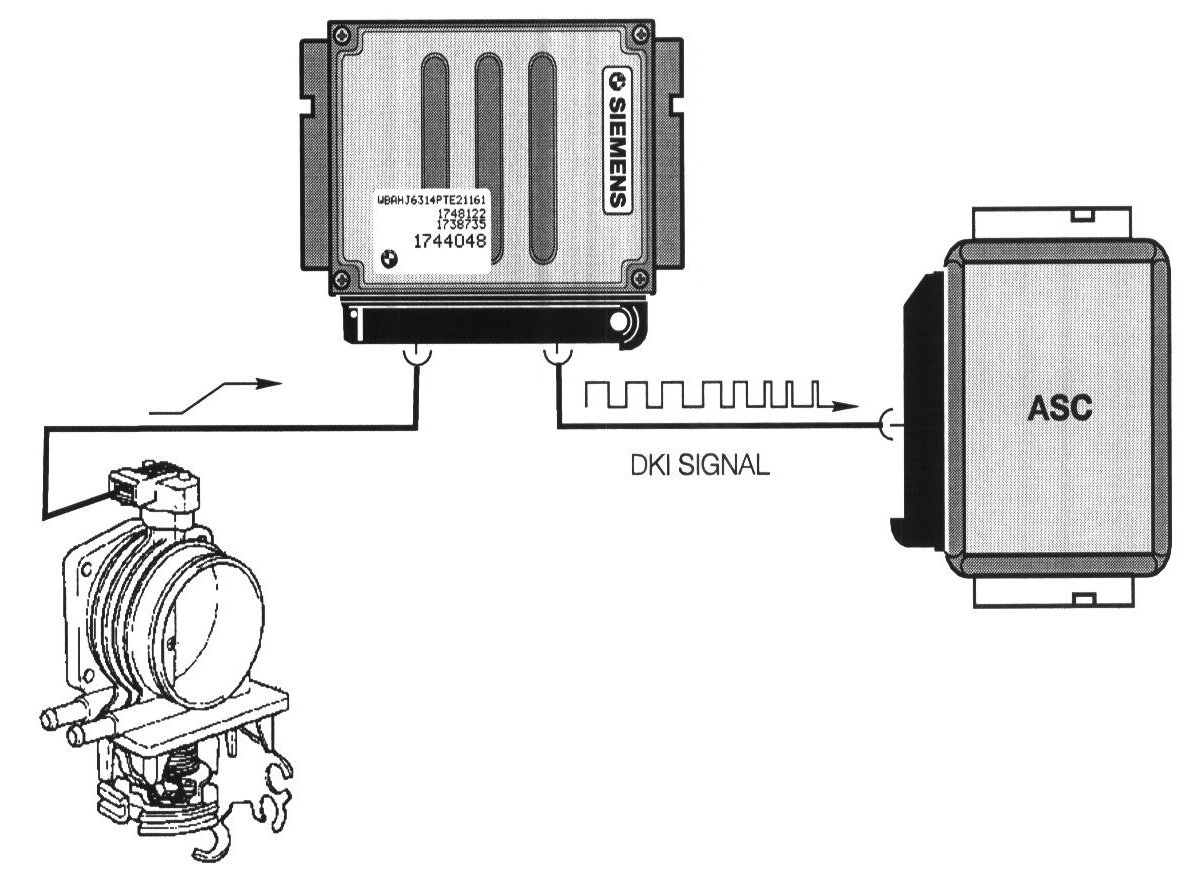

DKI is the throttle position output signal to the ASC Control Module (if equipped). The DKI signal is directly proportional to the linear throttle position sensor input signal. This output signal is used by the ASC control module during ASC regulation. DKI is a pulse width modulated signal.
