Checking Hydraulic Pressure Valves

Checking hydraulic pressure values

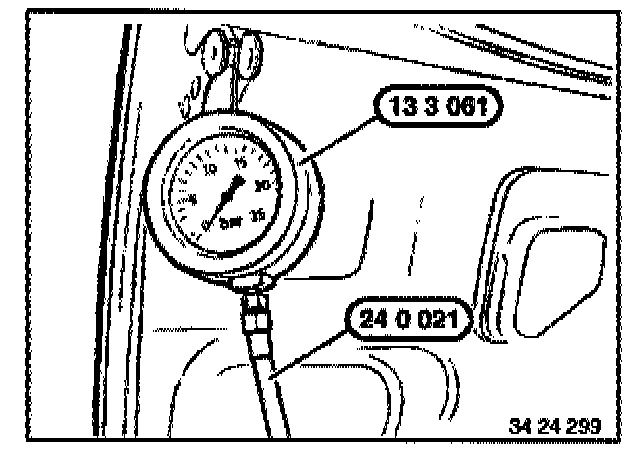

Connect hose 24 0 021 to pressure guage 13 3 061.

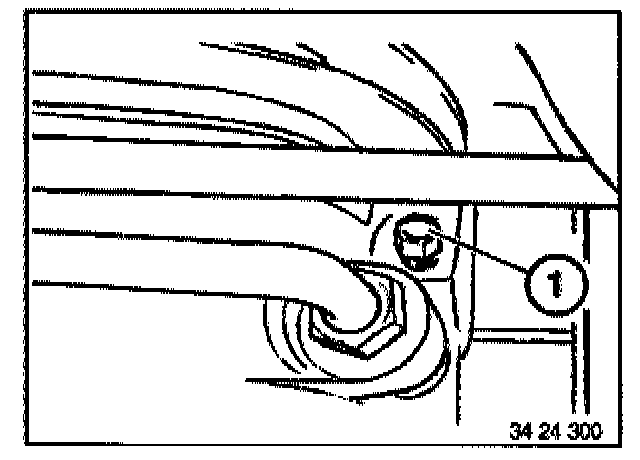

Unscrew and remove plug (1) from the converter bell housing to check the main pressure.

Caution: Inch threads.

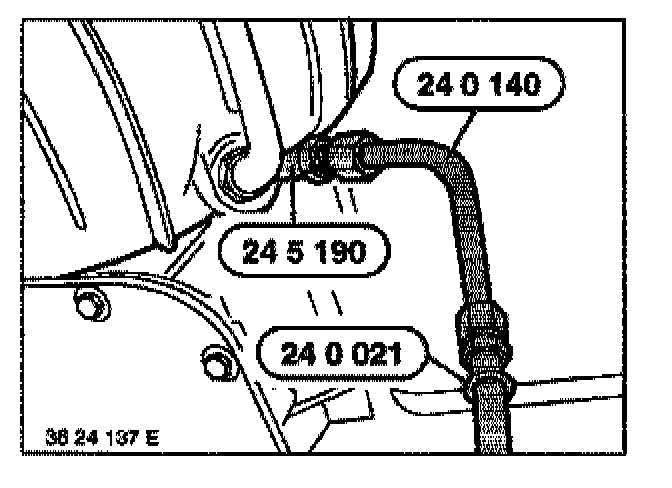

Screw in and secure special tool 24 5 190 (adapter).
Screw pipe elbow 24 0 140 to adapter and connect with hose 24 0 021.
Start engine.
Selector lever in "P" or "N".
Engine speed > 1500 rpm.
Read main pressure on pressure guage.
Main pressure specification: 9.6 - 10.5 bar.
