Refrigerant Equipment
A proper system charging station includes the following components:
- A manifold gauge set.
- An electronic weighing scale.
- A bulk refrigerant supply tank.
- A vacuum pump.
- Hoses for connection to the automotive
- A/C system.
This setup will allow you to evacuate and charge an A/C system.

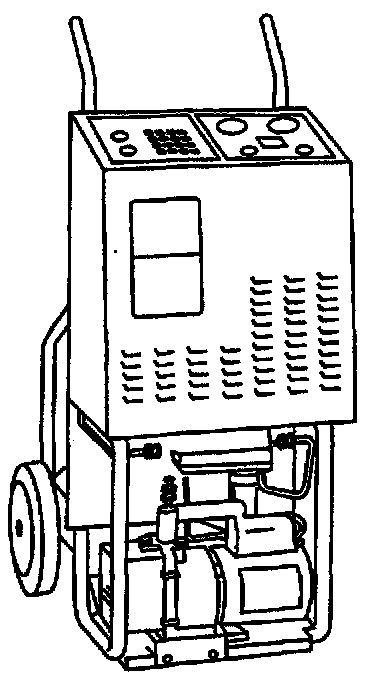

Kent-Moore Enviro-Charge
Recovery/Recycling/Recharging Station for R-12:
For handling R-12 refrigerant, use an R-12 recovery/recycling/recharging unit (such as the Kent-Moore Enviro-Charge J 39770).

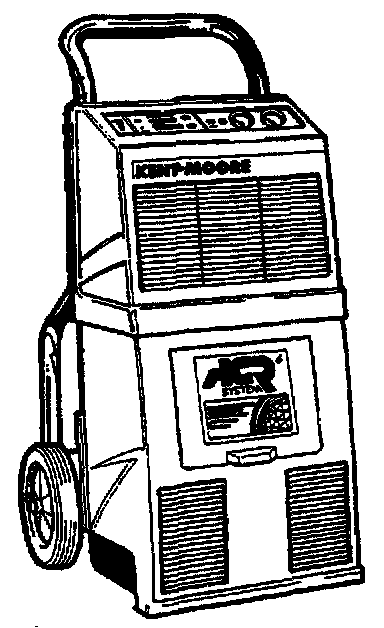

ACR4 Recovery/Recycling/Recharging Station for R-134a:
For handling R-134a refrigerant, a different unit is used (the Kent-Moore ACR(4)).
These units filter and remove moisture from the refrigerant, before discharging it into a recovery tank.
