Dashboard / Instrument Panel: Service and Repair

REMOVING AND INSTALLING INSTRUMENT PANEL TRIM

- Remove center console. Service and Repair

- Remove glove box.

- Remove instrument cluster.

- If applicable remove radio.

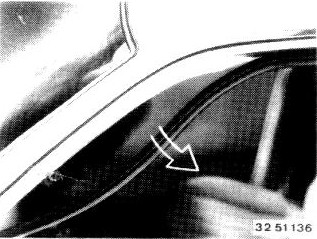

- Pull off rubber door seal carefully.

- List out A pillar trim on left and right sides.

- Pull off plug.

- Open holder.

- Pull out lock.

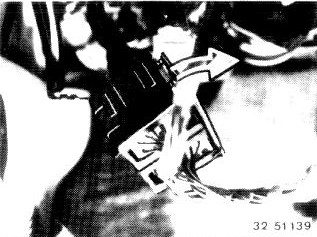

- Disconnect plug.

- Lift out speaker balance control.

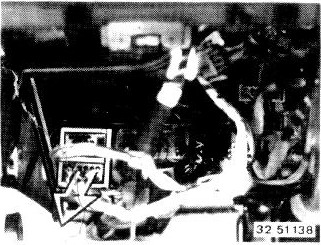

- Disconnect plugs.

- Unscrew screw.

- Pull off trim.

- Pull off leeds on glove box light.

- Pull off plug.

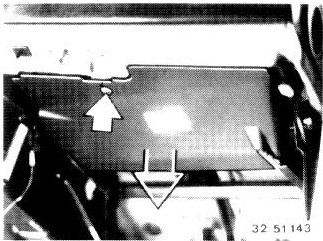

- Lift out plate.

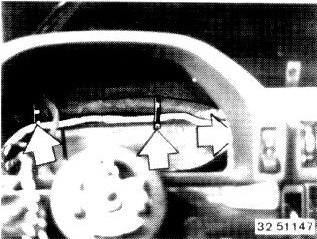

- Unscrew each middle screw.

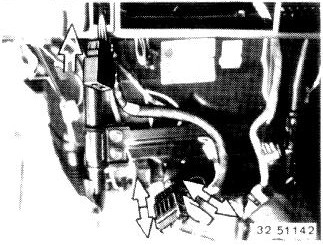

- Cut off wire straps on heater wire harness.

- Pull off leeds on ventilation duct potentiometers.

- Unscrew screws on left and right sides.

- Lift out instrument panel.
