Main Relay (Computer/Fuel System): Locations



Control Unit Locations:




Component ID: P90
Component Name: Front Power Distribution Box
Component Location: Rear LH side of engine compartment

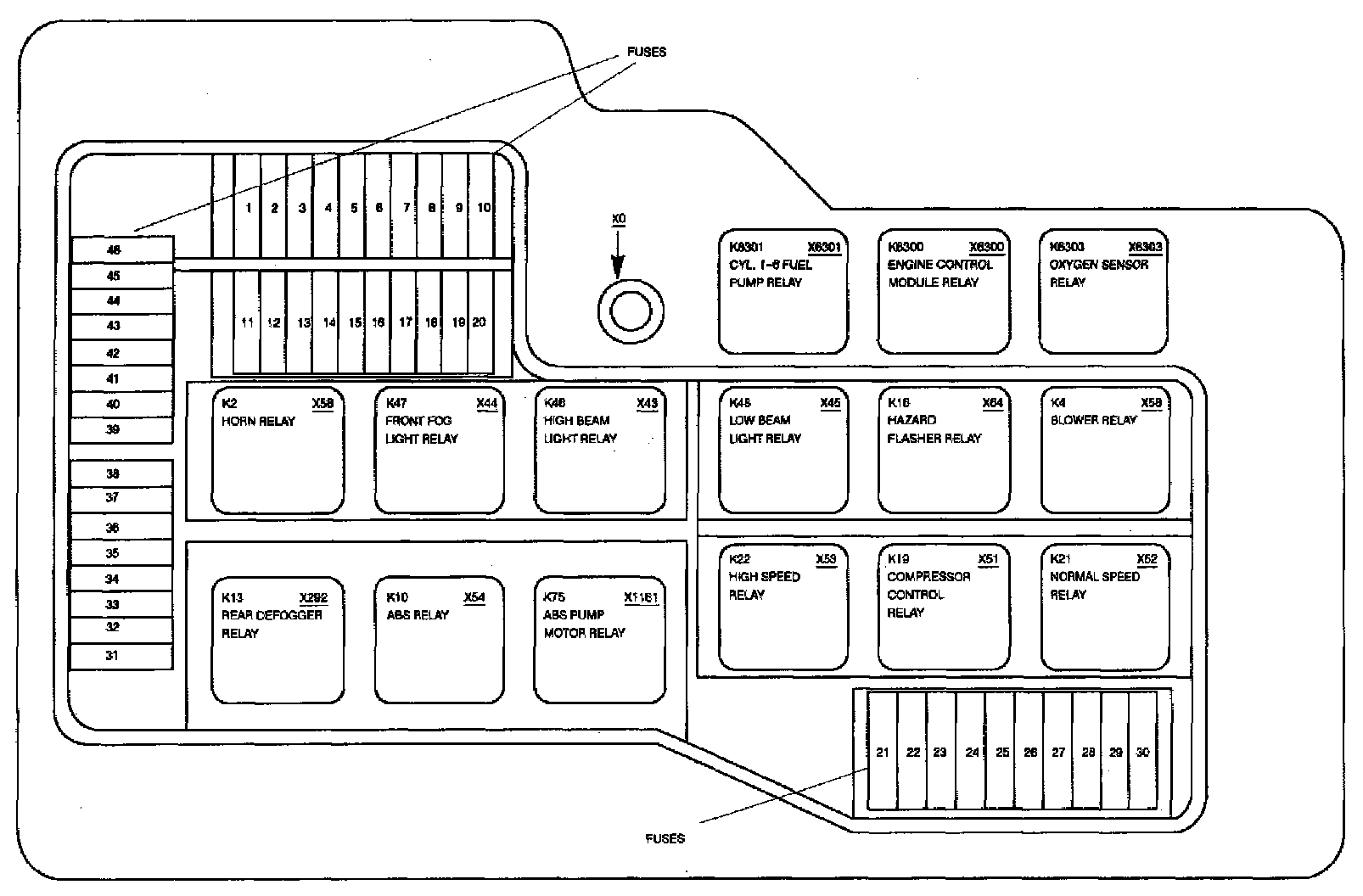

Layout Of Front Power Distribution Box:

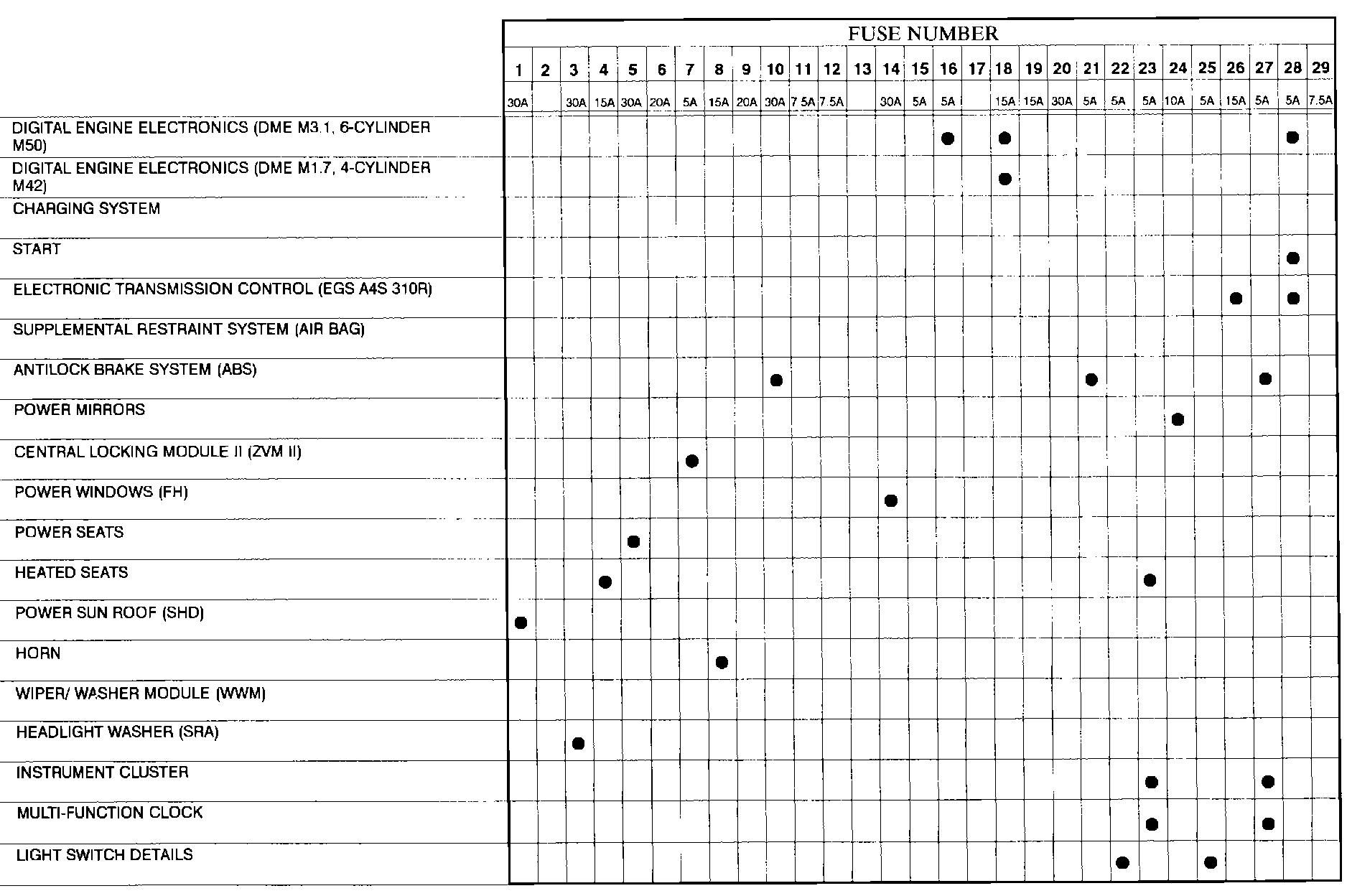

Fuses 1 To 29 Part 1:

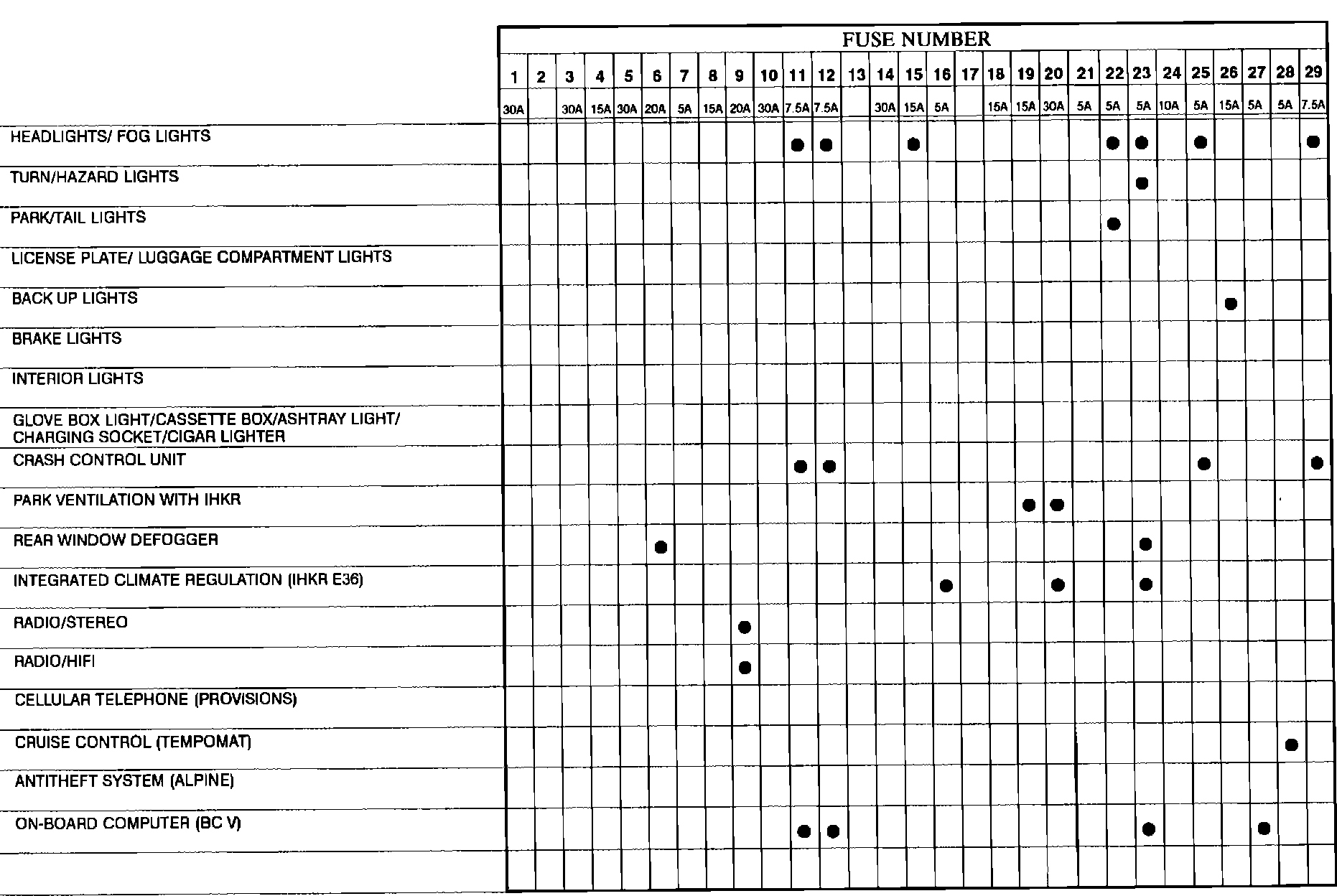

Fuses 1 To 29 Part 2:

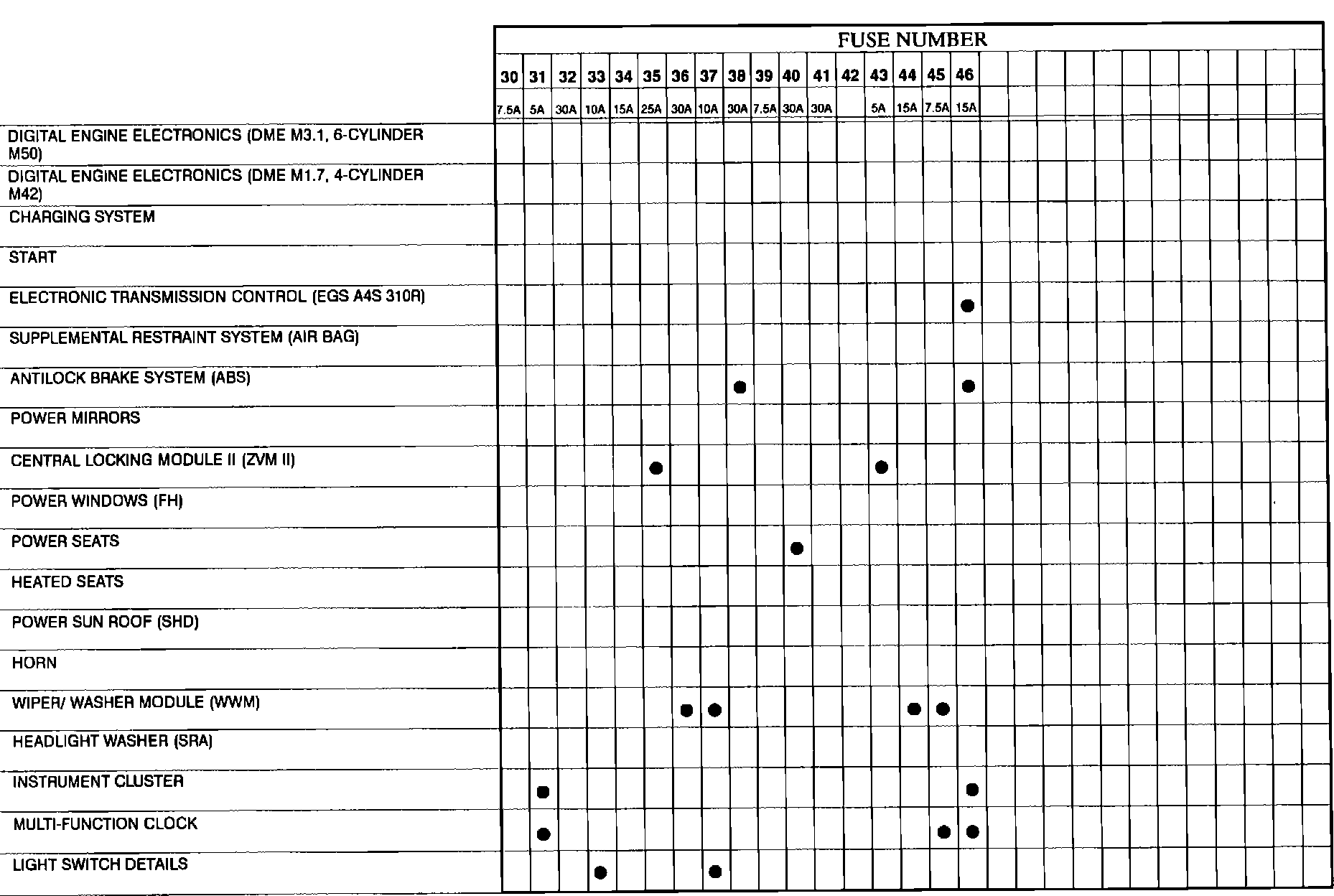

Fuses 30 To 46 Part 1:

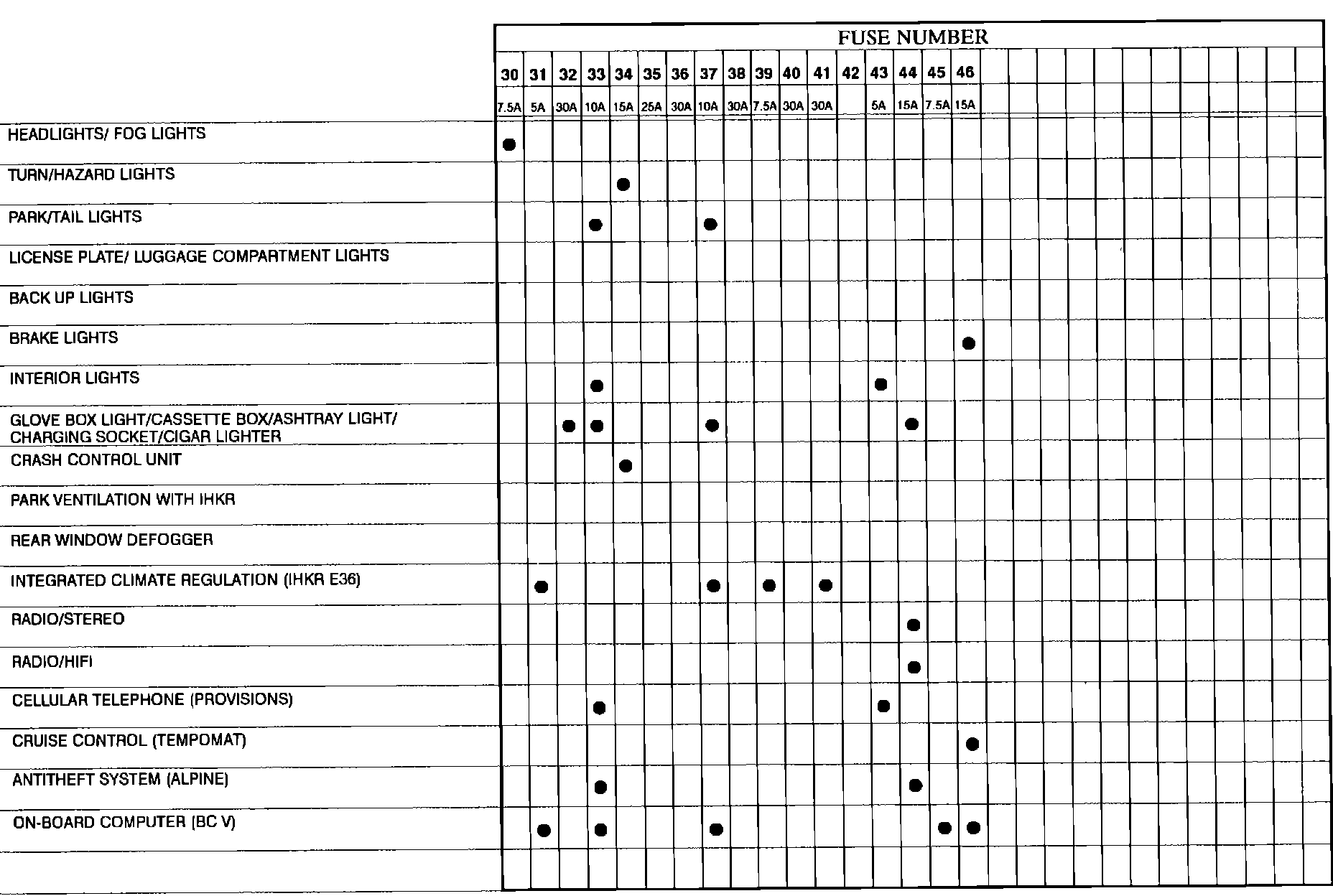

Fuses 30 To 46 Part 2:
