Control Module HVAC: Service and Repair

A/C CONTROL MODULE, REMOVING AND INSTALLING

The A/C control module is mounted behind the evaporator on top of the transmission tunnel.

1. From inside the car remove glove box.

NOTE: On early cars, the A/C control module may have harness connectors on both sides of module.

2. Remove screws retaining center console carpeted side panels at right and left sides. Remove panels.

3. Remove A/C control module electrical connector from left side of control unit, if necessary.

4. Remove screws retaining trim panel above glove box and remove trim panel, disengaging from clip at rear.

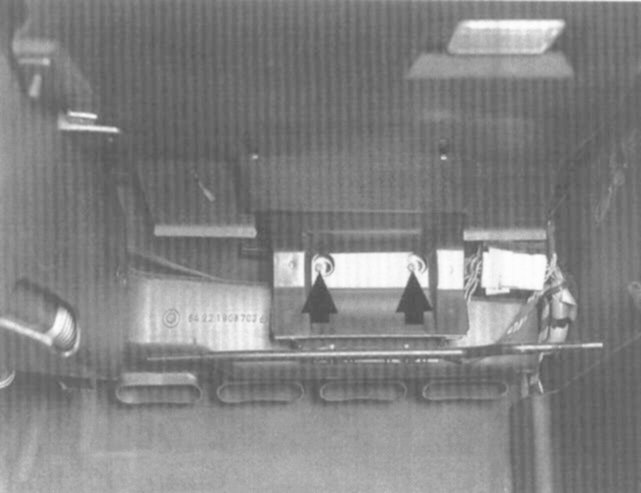

5. Remove two screws (arrows) retaining ventilation duct and remove duct.

6. Separate all electrical connectors from A/C control module and push aside wiring harness.




7. Depress control module retaining clip (black arrow) and slide control module out from right side.
