Bavaria C

Checking Connecting Wires




- Connecting wires must be checked for continuity and short circuit.

Procedures:
Unplug connecting wire on both ends.
Fit a short circuit bridge to the V1 or V2 line on the 12-pin anodized connector on the operating unit (special tool 65 1 030).
Measure at the other end with a multimeter and test points, whether there is continuity between the various pins.

Remove short circuit bridge. there should no longer be continuity between pins.
Proceed accordingly with the V3 wire. only one other kind of short circuit bridge is used (special tool 65 1 040).

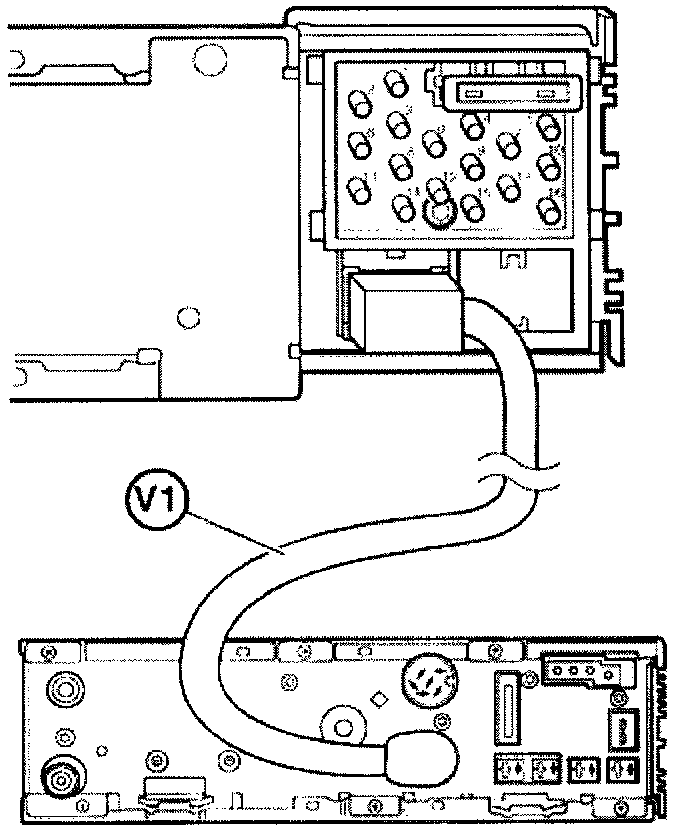

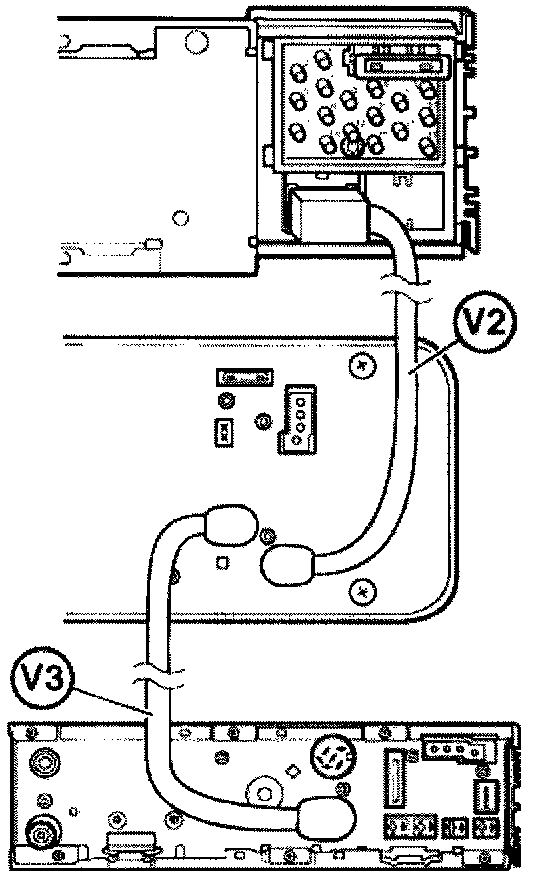

Routing of wires without CD player

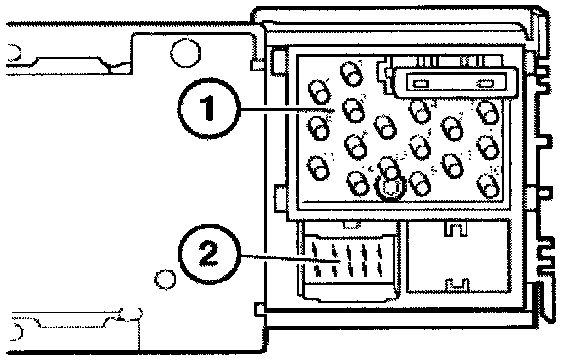

Connections for Control End:
1. Connector, 17-pin (power supply)
2. Connector, 10-pin (to receiver with connecting cable V1 or to CD player with connecting cable V2)
3. Fuse = 3 amperes

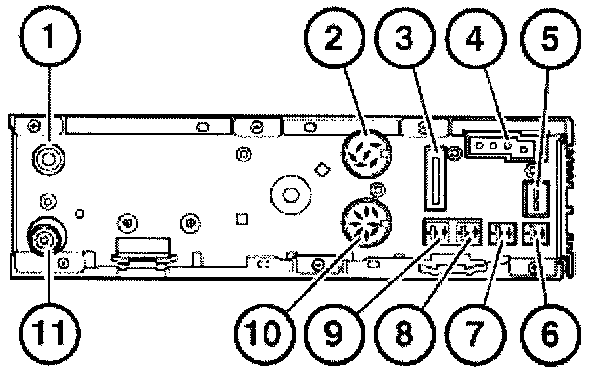

Connections for Receiver End:
1. Antennas - various
2. Remote control
3. Fuse = 5 amperes
4. Connector 4-pin (power supply)
5. Connector, 1-pin (electric aerial)
6. Speaker front left
7. Speaker front right
8. Speaker rear left
9. Speaker rear right
10. Connector, 8-pin, (from controls with connecting cable V1 or from CD player with connecting cable V3)
11. Aerial connection

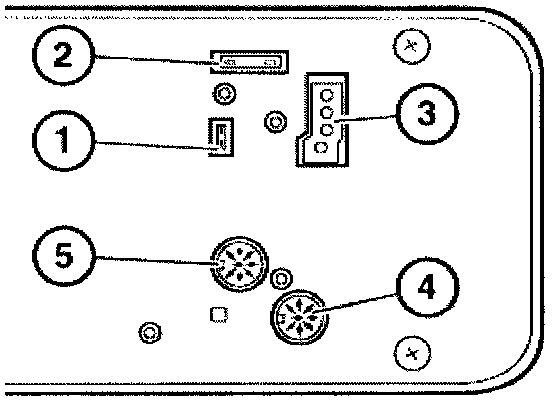

Connections for CD player End:
1. Connector, 1-pin (12V control outlet)
2. Fuse = 3 amperes
3. Connector (power supply)
4. Connector (to receiver with connecting cable V3)
5. Connector (from controls with connecting cable V2)
