General Information

Introduction

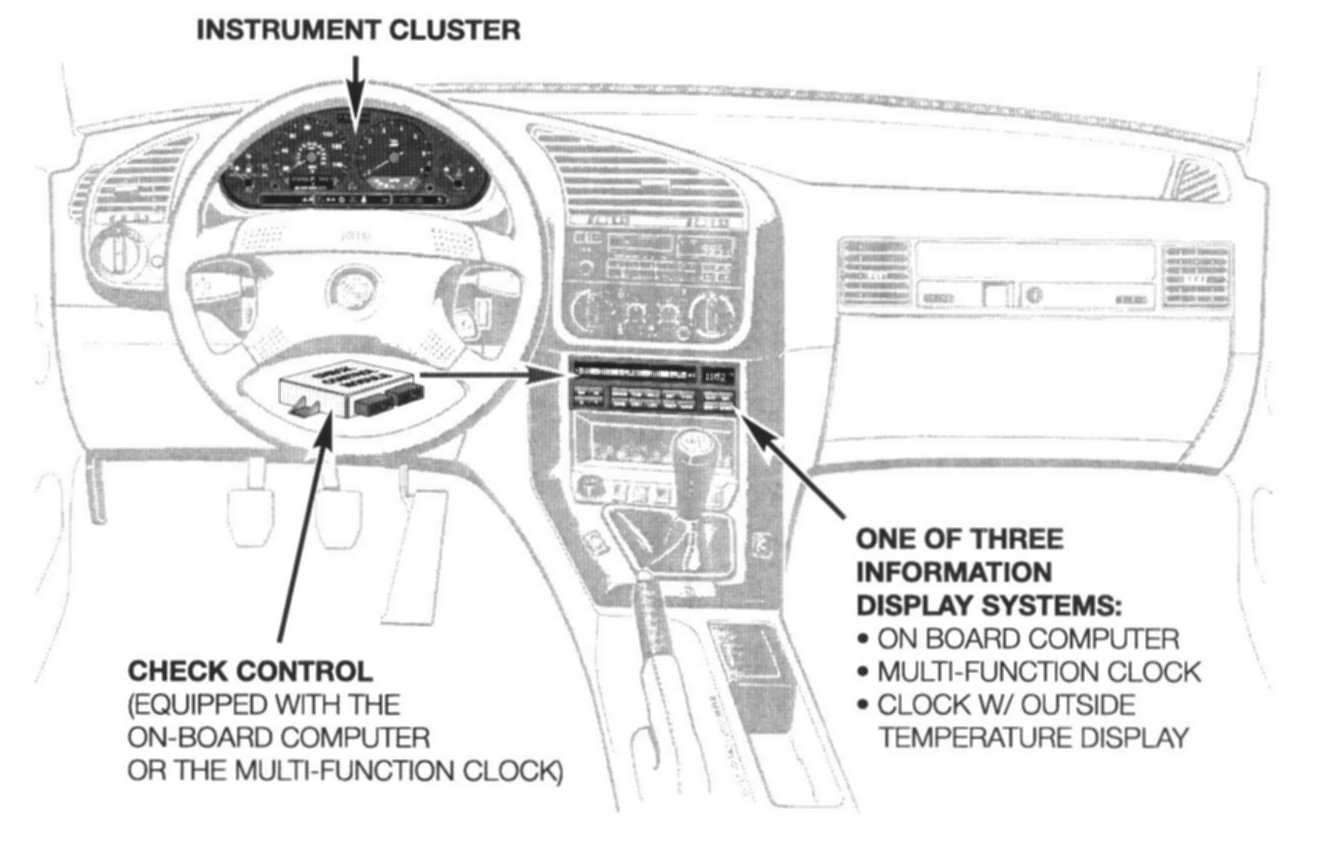

The driver information systems found on the E36 and Z3 models consists of the following components/systems:







Different systems are found on the E36s depending on the Model Year, standard/optional equipment and/or specific vehicle.

There are two different instrument clusters used on the E36 and Z3 depending on the Model. Although they look the same and function generally the same there are differences between the models and over the model years.




One cluster is connected to the diagnostic link for troubleshooting purposes and the other incorporates self contained test functions. The latest models have both features.




The higher line models incorporate a check control warning system for various lamp failures and low fluid levels. The majority of system failure warnings are through the instrument cluster warning lamps positioned on the face of the cluster.




The high line models also have the option of the full touring On-board Computer system.

This system incorporates the display matrix for the check control system.




The Multifunction Clock incorporates the Check Control system and a digital clock.




Standard equipment is the digital clock which contains an outside temperature display.




A limited function Board Computer is offered as an option for the E36ti and Z3 models.
