System Diagram

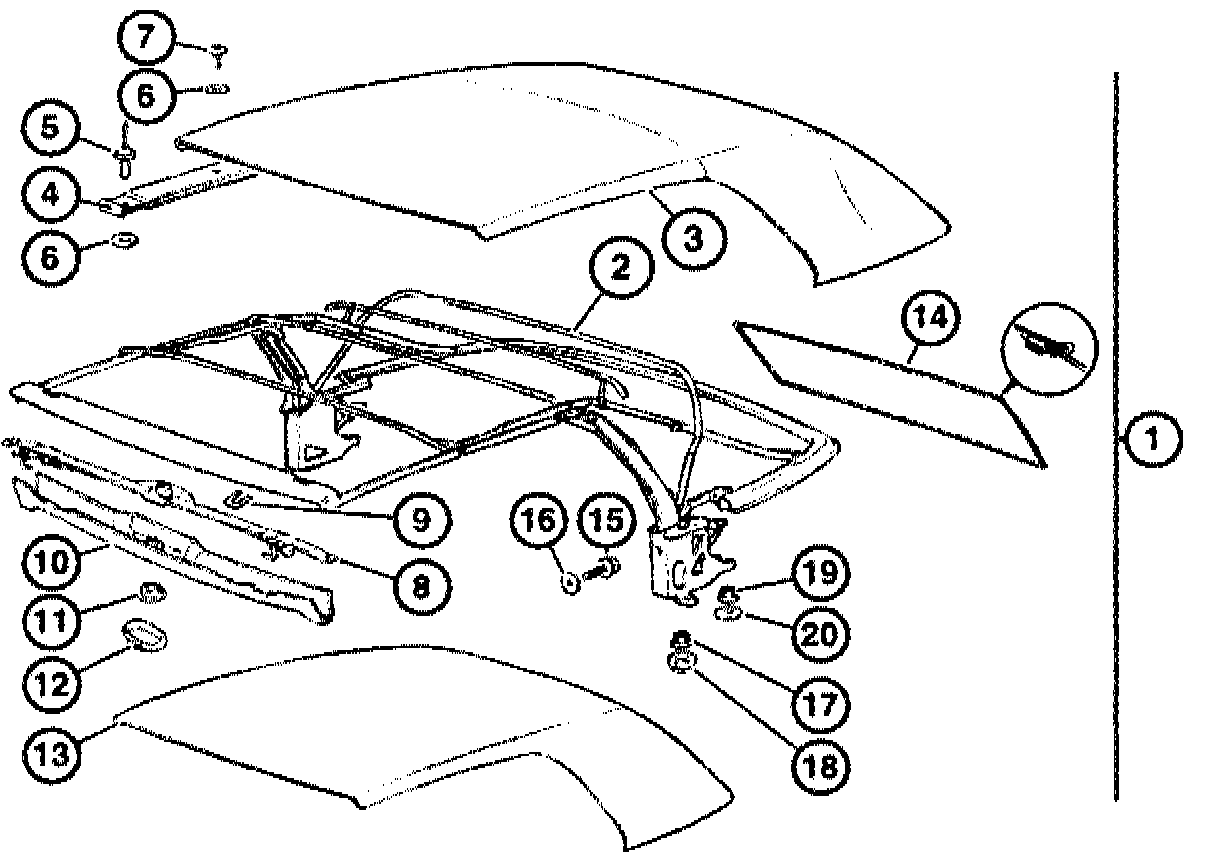

SURVEY OF CONVERTIBLE TOP COVER AND LINKAGES:

Survey of Convertible Top Cover and Linkages:

1 Complete convertible top
2 Soft top frame
3 Soft top cover
4 Tensioning belt
5 Rivet
6 Washer
7 Raised countersunk head tapping screw
8 Fastener
9 Spacer
10 Plate
11 Escutcheon
12 Handle
13 Roof liner
14 Rear windscreen with zip fastener
15 Hex bolt with washer
16 Washer
17 Collar nut
18 Eccentric
19 Hexagon nut
20 Washer

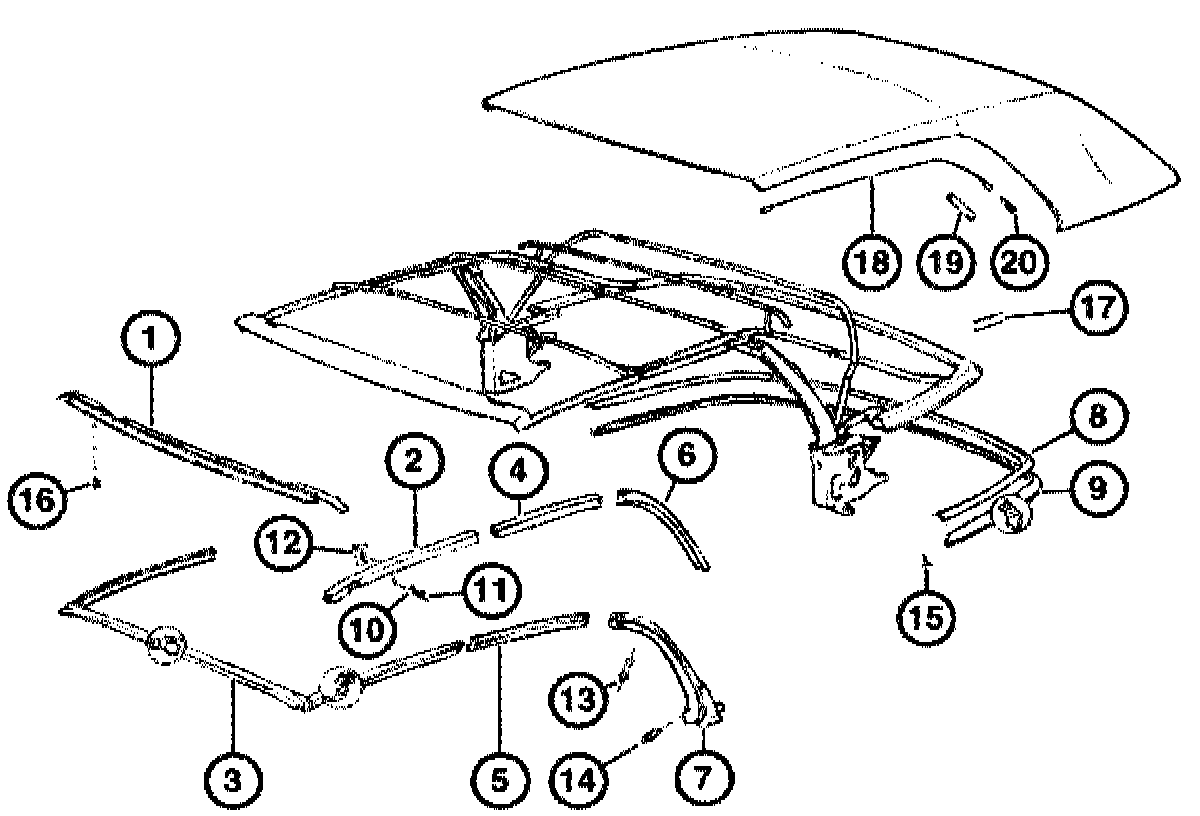

Survey of Convertible Top Cover and Linkages:

1 Front rail
2 Rail L/R
3 Front seal
4 Rail L/R
5 Window guide L/R
6 Rail L/R
7 Window guide, rear L/R
8 Rail
9 Seal
10 Washer
11 Bolt
12 Spacer
13 Rivet
14 Rivet
15 Raised countersunk head tapping screw
16 Self-tapping screw
17 Edge protector
18 Cable
19 Insulating hose
20 Spring
