Tail Lamp: Service and Repair

Replacing Bulb For Left or Right Tail Light Assembly







Sedan, Coupe, Convertible

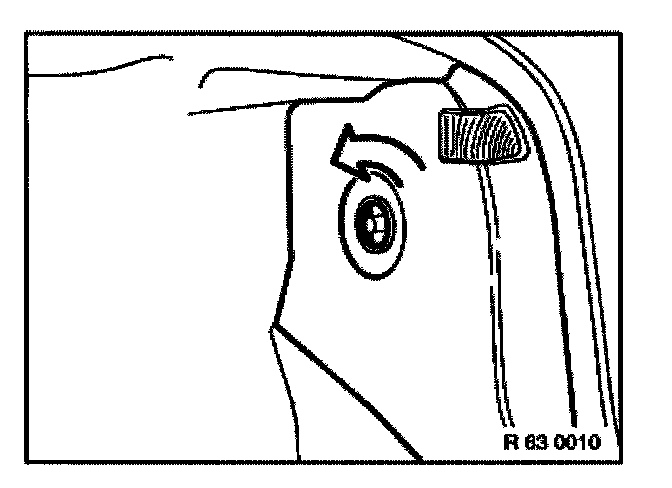

Turn clip 90 ° and take off bulb cover.


Turn and take out corresponding bulb holder. Turn and take out bulb.


Caution! Using correct bulb type, refer to Technical Data.

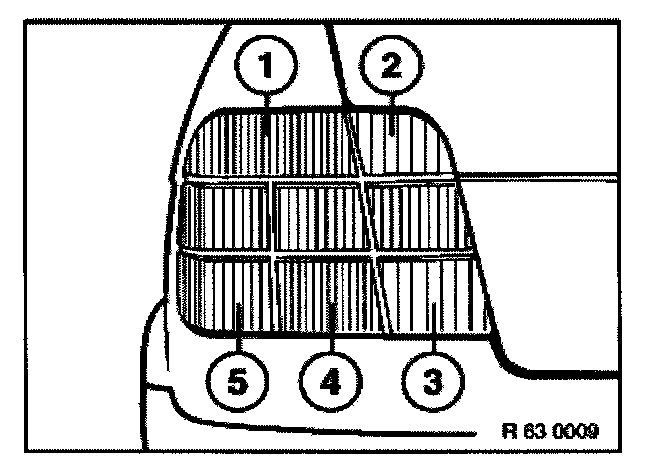

1. Reversing lights
2. Turn-indicator light
3. Tail light, rear fog light
4. Tail light
5. Brake light







Compact

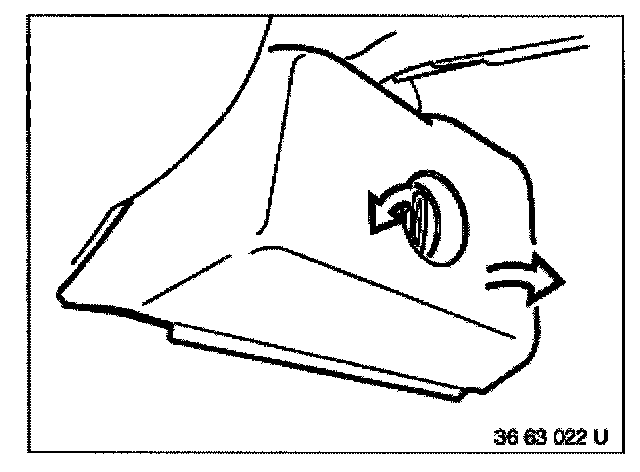

Turn clip 90 ° and take off bulb cover.







Turn and take out bulb.


Caution! Use correct bulb type. Do not take hold of glass part of bulb with bare fingers. Only take hold of bulb on base or with a clean cloth or packaging of light bulb.

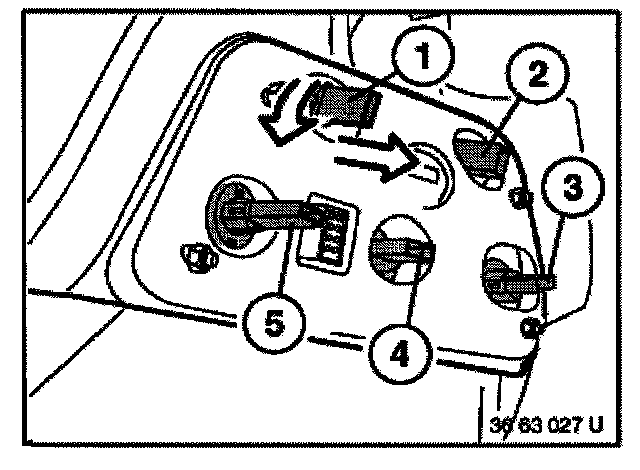

1. Turn-indicator light
2. Reversing lights
3. Tail light, rear fog light
4. Tail light
5. Brake light







Roadster

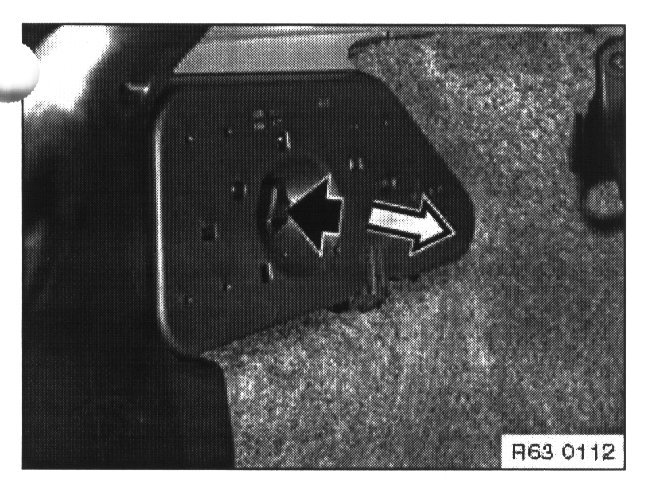

Unfasten nut and remove lamp socket.


Turn and take out bulb.

Caution! Using correct bulb type. Do not take hold of glass part of bulb with bare fingers. Only take hold of bulb on base or with a clean cloth or packaging of light bulb.

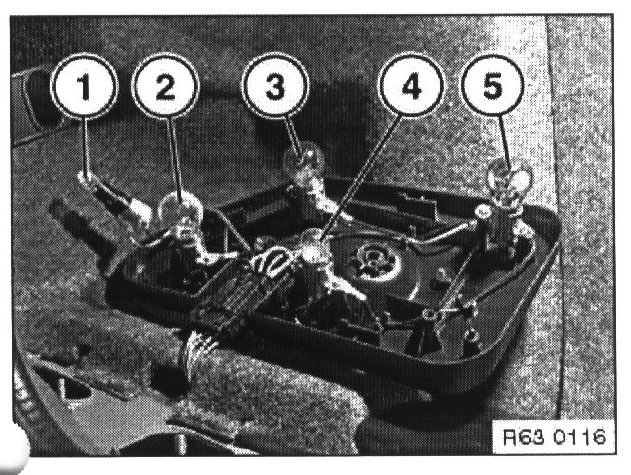

1. Side marking lights (US)
2. Brake light
3. Turn-indicator light
4. tail light
5. Reversing lights
