15 Pin In-Line Connector

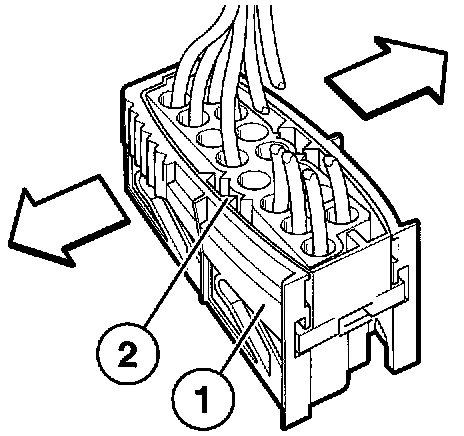

- Pull external connector (1) out slightly in area of retaining lugs (2) carefully.

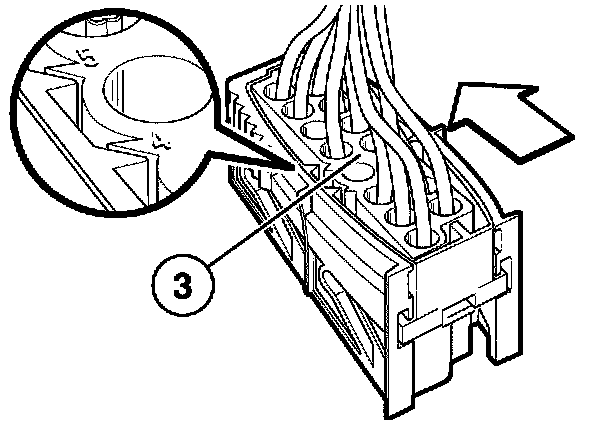

- Pull internal connector (3) as far as it will go in direction of arrow.

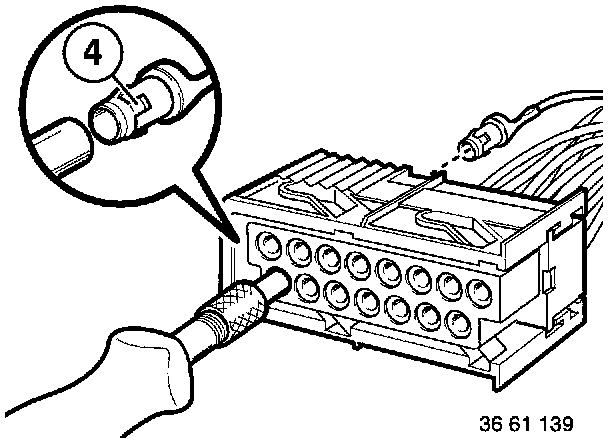

- With special tool 61 1 132 (ejector), press back arrester hook (4) of appropriate contact and pull out cable.
